Linear Guide Units

• Materials
 Aluminum Alloy (Clear Anodizing)




Shaft Fitting Bolts attached.
S1 and d have the same hole position.
For Shaft applicable to Shaft Guide Rails, refer to Taps on Body Type, Precision Linear Shafts Taps on Body Type.

D	10/13					16/20					25/30
L	200	300	400	500	600	200	300	400	500	600	300	400	500	600
M	2	3	4	5	6	2	2	3	4	4	2	2	3	3
N	50	50	50	50	50	25	75	50	25	75	50	100	50	100

Number of the holes for M and Dim. N depends on Dim. L.

Specifications

• Specifications

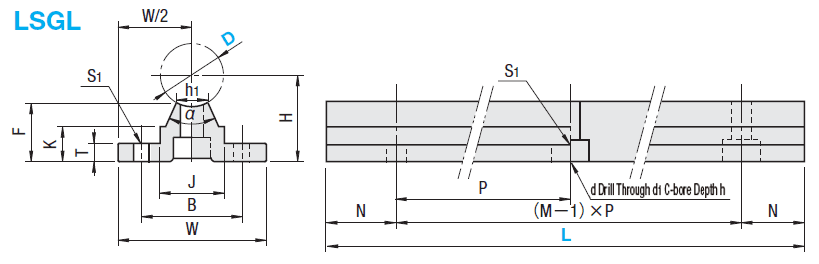

Part Number		L Selection					H	W	F	T	B	K	J	h1	α	S1	P	d	d1	h
Type	D
LSGL	10	200	300	400	500	600	18	32	13.5	4	22	8.9	12.4	4.7	80°	4.5	100	4.5	8	4.5
	13						21	34	15.0	4.5	25	9.8	15.0	6.0
	16						25	40	17.8	5	30	11.7	18.5	8.0		5.5	150	5.5	9.5	5.5
	20						27	45	17.7	5	30	10.0	19.0	8.0	50°			6.5	11	6.5
	25		300	400	500	600	33	55	21.0	6	35	12.0	21.5	8.0		6.5	200
	30						37	60	22.8	7	40	13.0	26.5	10.3				9	14	8.5
