Floating Joints - Standard Length Type

Brand :

MISUMI

Product Description

·Materials

Tuftride®treatment may cause uneven color, which doesn't affect mechanical function.

Tuftride®is a trademark of DURFERRIT GmbH.

Refer to Hardening and Hardness Test Methods for details of Tuftride®

No LTuftride®treatment on the screw end of L Dimension Specified Type.

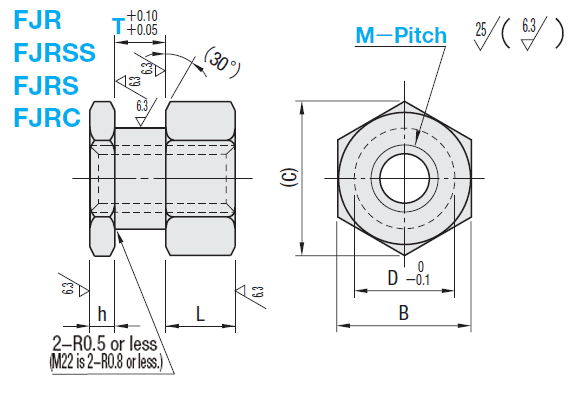

* Specifications

Part Number		T Selection														L	h	D	B	(C)
Type	M−Pitich															L Dimension Fixed Type

L Dimension Fixed Type FJR FJRSS (* for T Dimension Only) FJRS FJRC (For T dimension, † marks only Thread diameters 8, 10 and 12 are 8-1.25/10-1.25 12-1.25 )	3−0.5	2	3∗	4*∗	5	6										5	3	6	8	9.2
	4−0.7	2	3∗	4*∗	5∗	6∗	8∗									6		7	10	11.5
	5−0.8		3∗	4∗	5∗	6*∗	8∗	9∗	10∗							7		8	12	13.9
	6−1.0		3	4∗	5∗	6*∗	8∗	9	10	12						8	4	10	14	16.2
	8−1.0			4	5∗	6∗	8*∗	9	10	12∗	13	15	16			9		13	17	19.6
	8−1.25
	10−1.25			4	5	6∗	8*∗	9∗	10∗	12∗	13	15	16	19	20	11		16	21	24.2
	10−1.5
	12−1.25				5	6	8	9	10	12*∗	13	15	16	19	20	12		18	23	26.6
	12−1.5
	14−1.5				5	6	8∗	9∗	10∗	12*∗	13	15	16∗	19∗	20	13		21	26	30
	16−1.5						8	9	10	12	13	15*	16	19	20	15	5	25	30	34.6
	18−1.5						8	9	10	12∗	13	15*∗	16	19	20
	22−1.5									12		15			20*	17	6	27	32	36.9

For L Dimension Specified type, when h+T+L≤3M, the tapped hole goes through.

When T=2, only FJR is available.

Floating Joints and Holders Application Table (FJR, FJR_, FJR__)

M−Pitch	FJR FJR_ FJR_ _	Holders Flanged Type Holders Bar Type HLRC_ Catalogue P.1778	FJR FJR_ FJR_ _	HLRE_ P.1776	FJR FJR_ FJR_ _	HLRD_ P.1778	FJR FJR_ FJR_ _	HLRL_ P.1776	FJR FJR_ FJR_ _	Holders Flanged Type T Specified
3−0.5	4	6	4	−	−	−	−	−	3~6	6−3~6
4−0.7		7		7	8	7	6	7	3~8	7−3~8
5−0.8	6	8	6	8	10	8		8	3~10	8−3~10
6−1.0		10		10	12	10		10	3~12	10−3~12
8−1.0	8	13	8	13	13	13		13	4~12	13−4~12
8−1.25
10−1.25		16		16	15	16	8	16	5~15	16−5~15
10−1.5
12−1.25	12	18	12	18	16	18		18	−	−
12−1.5
14−1.5		21		21	19	21	10	21	6~15	21−6~15
16−1.5	15	25	15	25	20	25		25	8~20	25−8~20
18−1.5
22−1.5	20	27	20	−	−	−	−	−	12~20	27−12~20
