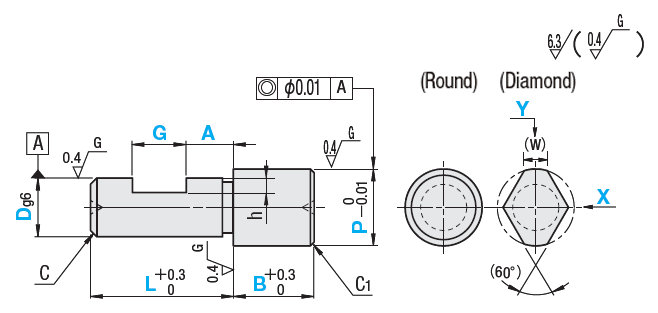

Locating Pins - Flat Head

·Materials

Material No.	Material	Surface Treatment	Hardness	Type	Shape Code
				Set Screw Flat
-1	SKS3	−	Hardening Hardness 60~63HRC	JPDF	S (Round) D (Diamond)
(2)	SKS3	Hard Chrome Plating Plating Thickness 3μm or more	Hardening Hardness 60~63HRC Plating Hardness 750HV~	GJPDF
(3)	SUS304	−	−	SJPDF
(4)	SUS440C	−	Hardening Hardness 50~55HRC	CJPDF

L>A+G+1




SUS440C type has an identification groove on D part.
Select set screw position X or Y for Diamond or Notch Set Screw Type.

Specifications

* Specifications

Part Number			P 0.01mm Increment	L 1mm Increment	B 0.1mm Increment	G 1mm Increment	A 1mm Increment	Flat Position	ℓ3	ℓ4	h	C	(W)
Type	Shape	D											When D	When D≥P
(Set Screw Flat)	S(Round) D(Diamond-Shaped)	6	5.00~10.00	12~20	5.0~20.0	3~9	2~8	X Y Diamond shape only	5.5	2.5	1.0	1	3	1.5
JPDF GJPDF SJPDF CJPDF		8	5.00~13.00	14~22	6.0~20.0		2~12		7.5	3.5	1.2	1.5	3.5	1.8
		10	5.00~15.00	15~25	7.0~20.0		2~16		7.5	3.5	1.2	2	4	2.2
		12	5.00~16.00	15~25	7.0~20.0		2~20		7.5	3.5	1.2	2	5	2.5
		16	10.00~25.00	24~35	10.0~20.0		2~28		10.5	5.5	2.0	3	7	4
		20	13.00~30.00	27~40	10.0~20.0		2~36		13.5	8.5	2.0	3	9	5

D	g6
6	−0.004 −0.012
8/10	−0.005 −0.014
12/16	−0.006 −0.017
20	−0.007 −0.020
