Slide Rails - Light Load, Compact, Aluminum / Stainless Steel - Three Step
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
- Slide Rails - Light Load, Compact, Aluminum / Stainless Steel, SAR3 / SARC3 / SSRC3 series from MISUMI.
- Aluminum Type has the advantage of being lightweight and Stainless Steel Type excels in corrosion resistance and load capacity, each available with a compact size.
- The overall length of the three-step slide rail can be selected up to 500 mm.
- The full stroke motion is unavailable when the length is 80mm, because the stroke length falls below the rail length.
- For horizontal installation, the target value of load rating is 25% (Reference Value)
- The rails cannot be pulled apart.

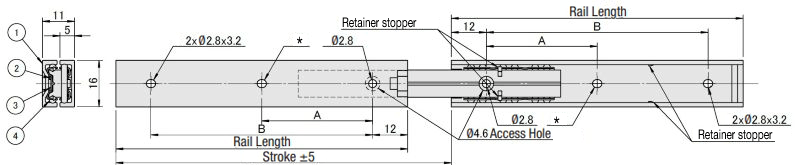

SAR3
SARC3
(Compact)
*Due to product improvements, SARC3 will be shipped sequentially switching from Figure (1) to Figure (2) as stock runs out.
Please note that either Figure (1) or Figure (2) may be delivered for the time being depending on stock availability.

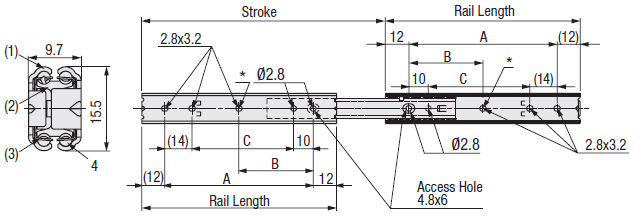

Figure (1)
[ ! ] When the rail is retracted, the drawer side rail stops at a position protruding 2 mm from the fixed side rail.
[ ! ] Only the 80 mm rail length does not reach full stroke because "stroke is shorter than rail length."
Figure (2)
[ ! ] When the rail is retracted, the drawer side rail stops at a position protruding 2 mm from the fixed side rail.
[ ! ] Only the 80 mm rail length does not reach full stroke because "stroke is shorter than rail length."Also, there is no hole marked with an asterisk (*).
(Compact)
*Due to product improvements, SARC3 will be shipped sequentially switching from Figure (1) to Figure (2) as stock runs out.
Please note that either Figure (1) or Figure (2) may be delivered for the time being depending on stock availability.
Figure (1)
[ ! ] When the rail is retracted, the drawer side rail stops at a position protruding 2 mm from the fixed side rail.
[ ! ] Only the 80 mm rail length does not reach full stroke because "stroke is shorter than rail length."
Figure (2)
[ ! ] When the rail is retracted, the drawer side rail stops at a position protruding 2 mm from the fixed side rail.
[ ! ] Only the 80 mm rail length does not reach full stroke because "stroke is shorter than rail length."Also, there is no hole marked with an asterisk (*).
SSRC3
(Compact)
[ ! ] When the rail length is 80mm, the * marked hole is not provided.
(Compact)
[ ! ] When the rail length is 80mm, the * marked hole is not provided.
| Type | [M] Material | [S] Surface treatment | |||||||
| (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | ||
| SAR3 | Aluminum Alloy | Steel | − | Clear Anodize | − | ||||
| SARC3 | Aluminum Alloy | Steel | Clear Anodize | Zinc plating | - | ||||
| SSRC3 | SUS304 | Steel | − | ||||||
