Locating Pins for Fixtures - Standard Grade, Shouldered - Threaded
Brand :
MISUMI
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description
[Features]
· Polishing Relief Groove is smaller than the conventional products to avoid a workpiece getting stuck

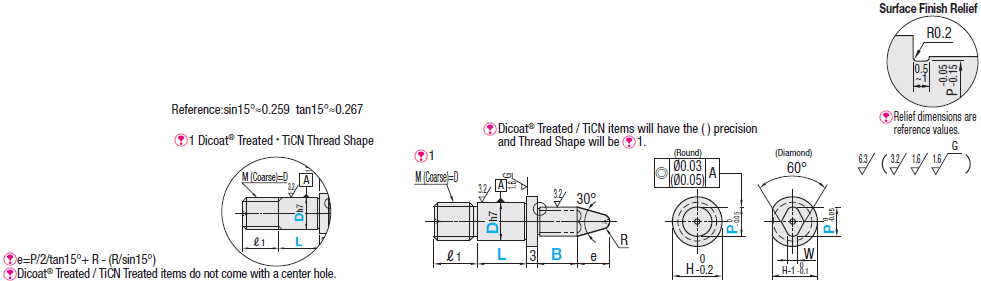

[ ! ] For Diamond Shapes, a step will be produced at the base of the P dimension.
| Type | [ M ] Material | [ H ] Hardness | |
| ELANA | Round | SCM435 | Hardening 35~40HRC |
| ELAND | Diamond | ||
| TELANA | Round | SCM415 | Carburized Treated Hardness: 55HRC~ (Depth: 0.7 ~ 0.8) Anti-carburizing on Threads |
| TELAND | Diamond | ||
| Type | [ M ] Material | [ H ] Hardness | [ S ] Surface Treatment | |
| R-LANA | Round | SCM435 | 35~40HRC (Surface 750HV ~ ) | Hard Chrome Plating |
| R-LAND | Diamond | |||
| D-LANA | Round | SKD11 Equivalent | 55HRC ~ (Surface 3000HV) | Dicoat® Treated |
| D-LAND | Diamond | |||
| H-LANA | Round | SKD11 Equivalent | 55HRC ~ (Surface 3000HV) | TiCN Treatment |
| H-LAND | Diamond | |||
