Locating Pins - High Hardness Stainless Steel, Tolerance Selectable - Press Fit
Brand :
MISUMI
Caution
Product Description
| [ M ]Material | [ H ]Hardness | Pin Shape | Press Fit |
| High Hardness Stainless Steel | 35HRC~ | Round | AKFA |
| Diamond | AKFD |
Specifications
| Part Number | - | P | - | L | - | B | - | E | - | A | ||||||
| Type | D Tol. | P Tolerance | D | |||||||||||||
| AKFA | M | S | 6 | - | P10.00 | - | L6 | - | B3.0 | - | E5.0 | - | A30 | |||
■Tolerance Selection
[ ! ]P-2EtanA≥0.73 (Tip dia. Ø0.73 or more)
Reference:tan15°≈0.267 tan30°≈0.577
tan45°=1 tan60°≈1.732
| D or P | Standard Grade | ||||
| M | P | G | H | S | |
| m6 | p6 | g6 | h7 | - | |
| 2.00 ~ 3.00 | +0.008 +0.002 | +0.012 +0.006 | -0.002 -0.008 | 0 -0.010 | 0 -0.01 |
| 3.01 ~ 6.00 | +0.012 +0.004 | +0.02 +0.012 | -0.004 -0.012 | 0 -0.012 | |
| 6.01 ~ 10.00 | +0.015 +0.006 | +0.024 +0.015 | -0.005 -0.014 | 0 -0.015 | |
Reference:tan15°≈0.267 tan30°≈0.577
tan45°=1 tan60°≈1.732

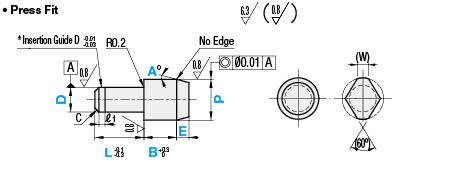

■Press Fit
[ ! ]L dimension in ( ) is applicable to Diamond Shape. [ ! ]When L=3, C=0.5,and ℓ1=1.
| Part Number | P 0.01mm Increment | L 1mm Increment | B 0.1mm Increment | E 0.1mm Increment | A Selection | C | (W) | ℓ1 | |||
| Type | D Tol. Selection | P Tolerance Selection | D | ||||||||
| AKFA (Round) AKFD (Diamond) | M P G H | S M P G H | 2 | 2.50~ 8.00 | 3 (4)~16 | 1.0~10.0 | 0.5~5.0 | 15 30 45 60 | 0.5 | 1.2 | 0 |
| 3 | 3.50~ 8.00 | 0.5 | 1.5 | 1 | |||||||
| 4 | 4.50~ 8.00 | 1 | 1.8 | 1 | |||||||
| 5 | 5.50~ 8.00 | 1 | 2.2 | 1 | |||||||
| 6 | 6.50~10.00 | 1 | 3 | 1 | |||||||
| 8 | 8.50~10.00 | 4 (5)~16 | 1.5 | 3.5 | 1 | ||||||
