Locating Pins - Large Head, Round Tapered, D and P Tolerance, Taper R Selectable - Press Fit

■Tolerance Selection

D or P	Standard Grade					Precision Grade
	M	P	G	H	S	A	B
	m6	p6	g6	h7	-	-	-
2.00 ~ 3.00	+0.008 +0.002	+0.012 +0.006	-0.002 -0.008	0 -0.010	0 -0.01	+0.005 0	0 -0.005
3.01 ~ 6.00	+0.012 +0.004	+0.020 +0.012	-0.004 -0.012	0 -0.012
6.01 ~ 10.00	+0.015 +0.006	+0.024 +0.015	-0.005 -0.014	0 -0.015
10.01 ~ 18.00	+0.018 +0.007	+0.029 +0.018	-0.006 -0.017	0 -0.018
18.01 ~ 30.00	+0.021 +0.008	+0.035 +0.022	-0.007 -0.020	0 -0.021

[ NG ]Hard chrome plated and buff finished products are not available in Precision Grade Tolerance.

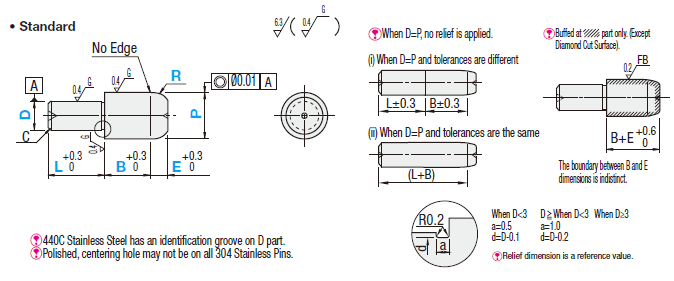

■Standard

Part Number				P 0.01mm Increment	L 1mm Increment	B 0.5mm Increment	E 0.5mm Increment	R	C
Type	D Tolerance	P Tolerance	D
KFPBA GKFPBA* SKFPBA CKFPBA (Buff Finished) MKFPBA* MGKFPBA* MCKFPBA* [ ! ]Applicable when D≥5.	M P G H *A *B	S M P G H *A *B	2	2.00~4.00	4~10	2.0~10.0	1.0~20.0	5 10 15 20 25 30 35 40	0.5
			3	3.00~6.00	5~12	2.0~10.0			0.5
			4	4.00~7.00	5~12	2.0~10.0			1
			5	5.00~8.00	5~12	2.0~10.0			1
			6	6.00~10.00	5~12	3.0~12.0			1
			8	8.00~13.00	8~15	3.0~14.0			1.5
			10	10.00~15.00	8~15	3.0~16.0			2
			12	12.00~16.00	10~18	3.0~18.0			2
			13	13.00~18.00	12~20	3.0~20.0	[ ! ]Configurable range depends on P dimension. Confirm "Details of E Dimension and R Dimension Range" in the table.		2
			16	16.00~25.00	14~25	3.0~20.0			3
			20	20.00~30.00	18~32	3.0~20.0			3

[ NG ]Hard chrome plated and buffed products are not available for * marked Precision Grade (Precision Grade A and B).

■Details of E and R Dimension Range

P 0.01mm Increment	E 0.5mm Increment	R
2.00~ 4.00	1.0~ 2.0	5	10
4.01~ 8.00	2.5~ 4.0		10	15
8.01~12.00	4.5~ 7.0		10	15	20
12.01~16.00	5.0~10.0			15	20	25
16.01~20.00	5.0~15.0				20	25	30
20.01~25.00	5.0~15.0					25	30	35
25.01~30.00	5.0~20.0						30	35	40
