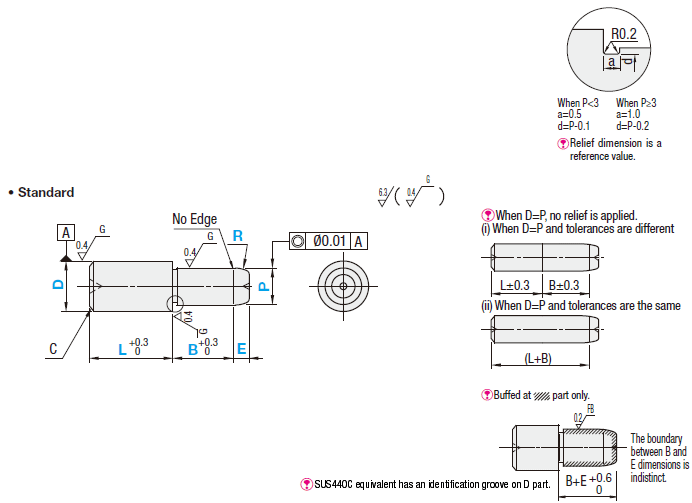

Locating Pins - Small Head, Round Tapered, D and P Tolerance, Taper R Selectable - Press Fit
Brand :
MISUMI
Caution
Product Description
| Material No. | [ M ]Material | [ S ]Surface Treatment | [ H ]Hardness | Type |
| Standard | ||||
| ① | SKS3 Equivalent | - | Treated Hardness: 60 ~ 63HRC | KFPSA |
| ② | SKS3 Equivalent | Hard Chrome Plating Plating Thickness: 3µm or more | Hardness: 50 ~ 55HRC Plating Hardness: 750HV ~ | GKFPSA |
| ③ | SUS304 | - | - | SKFPSA |
| ④ | SUS440C equivalent | - | Treated Hardness: 50 ~ 55HRC | CKFPSA |
| ⑤ | SKS3 Equivalent | Buffed Surface | Treated Hardness: 60 ~ 63HRC | MKFPSA |
| ⑥ | SKS3 Equivalent | Hard Chrome Plating + Buffed Plating Thickness: 3µm or more | Hardness: 50 ~ 55HRC Plating Hardness: 750HV ~ | MGKFPSA |
| ⑦ | SUS440C equivalent | Buffed Surface | Treated Hardness: 50 ~ 55HRC | MCKFPSA |
