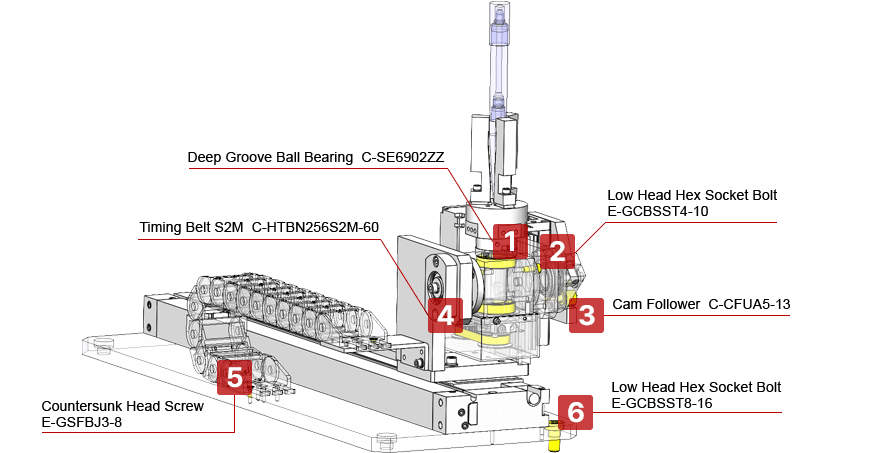

Inverting, Self-Rotating Chuck
Specifications and Features
- Purpose/Function
-
Transport/Movement
Drive/Actuation
Performing inversion and rotation during laser engraving of bar-shaped workpieces.
Robot transports bar-shaped workpieces to pickup/discharge locations.
After gripping the bar-shaped workpiece with a 3-hook air chuck, the chuck part inverts 90°, the guide-attached rodless cylinder advances, and the workpiece moves to the engraving position.
When performing engraving with a laser marker, the workpiece is rotated using a stepping motor and timing belt to change lines.
As the guide-mounted rodless cylinder retracts, the chuck inverts 90° and the bar-shaped workpiece is transported to the pickup/discharge position, where it is then discharged by the robot.
For safety, a cover is installed on the timing belt.
Robot transports bar-shaped workpieces to pickup/discharge locations.
After gripping the bar-shaped workpiece with a 3-hook air chuck, the chuck part inverts 90°, the guide-attached rodless cylinder advances, and the workpiece moves to the engraving position.
When performing engraving with a laser marker, the workpiece is rotated using a stepping motor and timing belt to change lines.
As the guide-mounted rodless cylinder retracts, the chuck inverts 90° and the bar-shaped workpiece is transported to the pickup/discharge position, where it is then discharged by the robot.
For safety, a cover is installed on the timing belt.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Deep Groove Ball Bearing | C-SE6902ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Stainless steel Basic dynamic load rating (N): 2185 Allowable rotational speed (RPM): 8000 |
2 | MYR 5.43/Unit |
| ② | Low Head Hex Socket Bolt | E-GCBSST4-10 | Screw nominal (M): 4 Length L(mm): 10 Material: Stainless steel RoHS10 compliant |
4 | MYR 0.34/Unit |
| ③ | Cam Follower | C-CFUA5-13 | Screw part nominal (M)(mm): M5×0.8 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 2.22 Allowable rotational speed (rpm): 16240 |
1 | MYR 22.97/Unit |
| ④ | Timing Belt S2M | C-HTBN256S2M-60 | Belt type: S2M Belt material: Chloroprene rubber Belt type: Circular tooth super torque Belt width (mm): 6 Number of teeth: 128 |
1 | MYR 4.44/Unit |
| ⑤ | Countersunk Head Screw | E-GSFBJ3-8 | Screw nominal (M): 3 Length L(mm): 8 Material: Stainless steel RoHS10 compliant |
8 | MYR 0.09/Unit |
| ⑥ | Low Head Hex Socket Bolt | E-GCBSST8-16 | Screw nominal (M): 20 Length L(mm): 16 Material: Copper alloy RoHS10 compliant |
4 | MYR 1.32/Unit |
※ Kindly check MISUMI eCatalog for latest information.
Product List
1![Hex Socket Low Head Cap Screw - Stainless Steel, Small Box / Single Item Sale[RoHS Comliant]【1-1,250 Pieces Per Package】](/pr/vona/eco_design/images/110310927449.jpg)
2
3
4![Cross Recessed Flat Head Machine Screws - Stainless Steel, Small Box / Single Item Sale[RoHS Comliant]](/pr/vona/eco_design/images/110310861569.jpg)
5
※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
