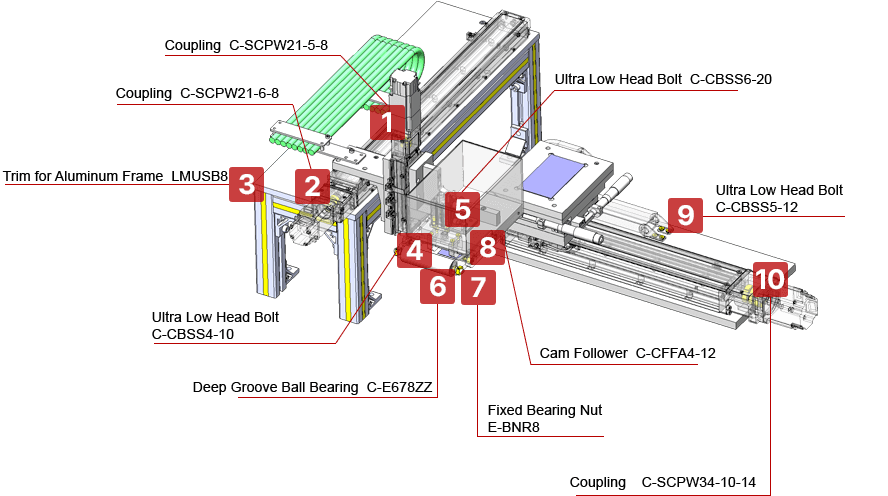

Polarizing Film Attachment Device for OLED Smartphones
Specifications and Features
- Purpose/Function
-
Transport/Movement
Assembly/Processing
Attaching polarizing film to OLED for smartphones.
For dust prevention, mechanical parts located above the workpiece are designed with dustproof specifications.
Environment/Operability:
① Place the work on the jig plate.
② Move the jig plate to the film winding device position.
③ Lower the suction unit to the film, then suction the film.
④ Move the suction unit horizontally to the work position.
⑤ Lower the suction unit to the work position, then release the film.
➅ Lower the roller, then raise the suction unit to the work height.
⑦ Move the suction unit horizontally to attach the film to the work.
⑧ Attach the film, then raise the roller.
For dust prevention, mechanical parts located above the workpiece are designed with dustproof specifications.
Environment/Operability:
① Place the work on the jig plate.
② Move the jig plate to the film winding device position.
③ Lower the suction unit to the film, then suction the film.
④ Move the suction unit horizontally to the work position.
⑤ Lower the suction unit to the work position, then release the film.
➅ Lower the roller, then raise the suction unit to the work height.
⑦ Move the suction unit horizontally to attach the film to the work.
⑧ Attach the film, then raise the roller.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Coupling | C-SCPW21-5-8 | Outer diameter A(φ): 21 Allowable torque range (Nm): 0.05~1.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000 |
1 | MYR 123.66/Unit |
| ② | Coupling | C-SCPW21-6-8 | Outer diameter A(φ): 21 Allowable torque range (Nm): 0.05~1.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000 |
1 | MYR 123.66/Unit |
| ③ | Trim for Aluminum Frame | LMUSB8 | Series: Groove width 8mm Length L(mm): 2000 Material: PVC |
2 | MYR 6.45/Unit |
| ④ | Ultra Low Head Bolt | C-CBSS4-10 | Screw nominal (M): 4 Length L(mm): 10 Material: Steel |
4 | MYR 16.97/Unit |
| ⑤ | Ultra Low Head Bolt | C-CBSS6-20 | Screw nominal (M): 6 Length L(mm): 20 Material: Steel |
4 | MYR 36.20/Unit |
| ⑥ | Deep Groove Ball Bearing | C-E678ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 380 Allowable rotational speed (RPM): 28000 |
2 | MYR 2.92/Unit |
| ⑦ | Fixed Bearing Nut | E-BNR8 | Screw nominal (M): M8×1.0 Material: Steel Surface treatment: Black oxide coating Screw type: Metric (fine) thread |
2 | MYR 9.56/Unit |
| ⑧ | Cam Follower | C-CFFA4-12 | Screw part nominal (M)(mm): M4×0.7 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 1.64 Allowable rotational speed (rpm): 20720 |
2 | MYR 24.50/Unit |
| ⑨ | Ultra Low Head Bolt | C-CBSS5-12 | Screw nominal (M): 5 Length L(mm): 12 Material: Steel |
8 | MYR 21.35/Unit |
| ⑩ | Coupling | C-SCPW34-10-14 | Outer diameter A(φ): 34 Allowable torque range (Nm): 3.01~5.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000 |
1 | MYR 160.28/Unit |
※ Kindly check MISUMI eCatalog for latest information.
