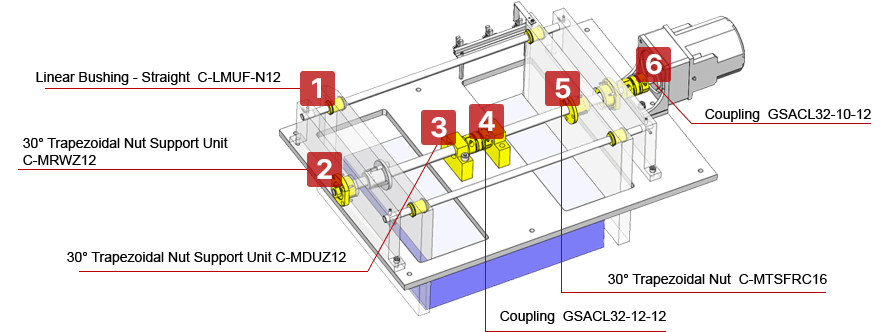

Automatic width Conversion Mechanism
Specifications and Features
- Purpose/Function
-
Positioning/Clamp
Drive/Actuation
Settings
Easily adjustable using coupling.
Automatically adjusts the guide width for transported workpieces when settings are changed.
By connecting right-hand and left-hand screws with a coupling, adjusting one feed screw allows guide width adjustment without changing the center reference.
For compact structures with short strokes, the right-hand screw, left-hand screw, block, and motor can be adjusted as a single unit to align positions.
Connecting right-hand and left-hand screws with a coupling allows for easy fine-tuning of the guide position.
Automatically adjusts the guide width for transported workpieces when settings are changed.
By connecting right-hand and left-hand screws with a coupling, adjusting one feed screw allows guide width adjustment without changing the center reference.
For compact structures with short strokes, the right-hand screw, left-hand screw, block, and motor can be adjusted as a single unit to align positions.
Connecting right-hand and left-hand screws with a coupling allows for easy fine-tuning of the guide position.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Linear Bushing - Straight | C-LMUF-N12 | Inner circle diameter dr(φ) : 12 Total Length L(mm): 30 Outer tube material: Iron Outer tube surface treatment: None |
4 | MYR 20.52/Unit |
| ② | 30° Trapezoidal Nut Support Unit | C-MRWZ12 | Type: Fixed side Support shaft diameter(φ): 12 Material: Steel Surface treatment: Black oxide coating |
2 | MYR 87.34/Unit |
| ③ | 30° Trapezoidal Nut Support Unit | C-MDUZ12 | Type: Support side Support shaft diameter(φ): 12 Material: Steel Surface treatment: Black oxide coating |
2 | MYR 43.68/Unit |
| ④ | Coupling | GSACL32-12-12 | Outer diameter A(φ): 32 Allowable torque(Nm): 4 Allowable eccentricity(mm): 0.15 Maximum rotational speed(r/min): 10000 |
1 | MYR 53.22/Unit |
| ⑤ | 30° Trapezoidal Nut | C-MTSFRC16 | Screw nominal diameter D(φ): 16 Pitch(mm):3 Material: Copper alloy Surface treatment: None |
1 | MYR 73.33/Unit |
| ⑥ | Coupling | GSACL32-10-12 | Outer diameter A(φ): 32 Allowable torque(Nm): 4 Allowable eccentricity(mm): 0.15 Maximum rotational speed(r/min): 10000 |
1 | MYR 53.22/Unit |
※ Kindly check MISUMI eCatalog for latest information.
Product List
![Linear Bushing - Standard, Single[RoHS Compliant]](/pr/vona/eco_design/images/110302580750.jpg)
1
2
3
4
5
※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
