One-Touch Mechanism for Changing Work Height Difference

Specifications and Features

Purpose/Function

Positioning/Clamp Settings

Easy to adjust manually.
Manually adjust height differences to clamp resin workpieces of various types.
Vertical shafts have grooves at different heights; positions are set by horizontal pins placed perpendicular to the shaft in these grooves.
To change height, press the horizontal pin and release the vertical shaft.

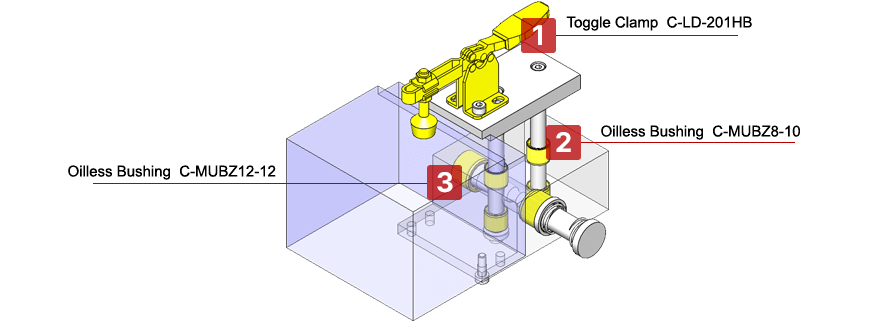

One-Touch Mechanism for Changing Work Height Difference

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Toggle Clamp	C-LD-201HB	Clamp bolt size: M5 Material: Steel (body), Steel + rubber pad (bolt) Clamping pressure (N): 360	1	MYR 8.76/Unit
②	Oilless Bushing	C-MUBZ8-10	Inner diameter d(φ): 8 Total length L(mm): 10 Material: Brass Operating temperature range (°C): -40 to 150	4	MYR 7.09/Unit
③	Oilless Bushing	C-MUBZ12-12	Inner diameter d(φ): 12 Total length L(mm): 12 Material: Brass Operating temperature range (°C): -40 to 150	2	MYR 9.58/Unit

※ Kindly check MISUMI eCatalog for latest information.
