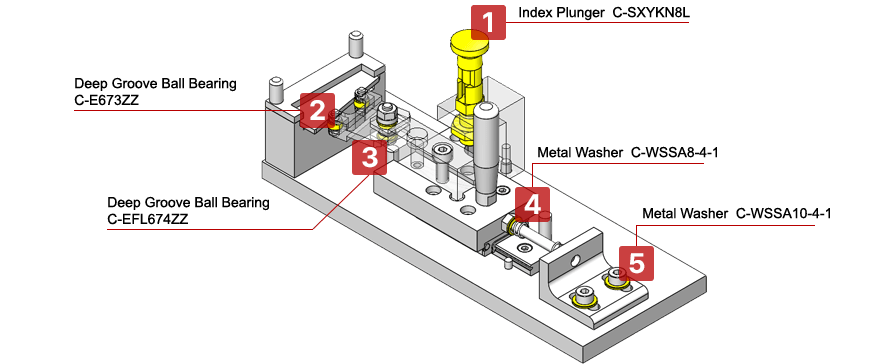

Different Shape Work Clamp Mechanism
Specifications and Features
- Purpose/Function
-
Positioning/Clamp
Assembly/Processing
Clamp for irregularly shaped workpieces using a floating mechanism.
Easily clamp workpieces with irregular shapes and dimensional variations.
The tip clamp section can secure workpieces regardless of shape variations using a floating mechanism.
The handle is used when setting the work, so clamping and unclamping are easy.
Environment/Operability: Manual clamping mechanism using floating mechanism.
Easily clamp workpieces with irregular shapes and dimensional variations.
The tip clamp section can secure workpieces regardless of shape variations using a floating mechanism.
The handle is used when setting the work, so clamping and unclamping are easy.
Environment/Operability: Manual clamping mechanism using floating mechanism.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Index Plunger | C-SXYKN8L | Lock mechanism: Rest position type Main body material: Stainless steel Tip material: Stainless steel Stroke S(mm): 6 |
1 | MYR 29.35/Unit |
| ② | Deep Groove Ball Bearing | C-E673ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 146 Allowable rotational speed (RPM): 50000 |
2 | MYR 3.25/Unit |
| ③ | Deep Groove Ball Bearing | C-EFL674ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 155 Allowable rotational speed (RPM): 42000 |
2 | MYR 4.52/Unit |
| ④ | Metal Washer | C-WSSA8-4-1 | Outer diameter D(mm): 12 Inner diameter V(mm): 5 Material: Steel Surface treatment: Trivalent chromate bright finish |
2 | MYR 0.63/Unit |
| ⑤ | Metal Washer | C-WSSA10-4-1 | Outer diameter D(mm): 10 Inner diameter V(mm): 4 Material: Steel Surface treatment: Trivalent chromate bright finish |
2 | MYR 0.63/Unit |
※ Kindly check MISUMI eCatalog for latest information.
Product List
1
2
3
4
※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
