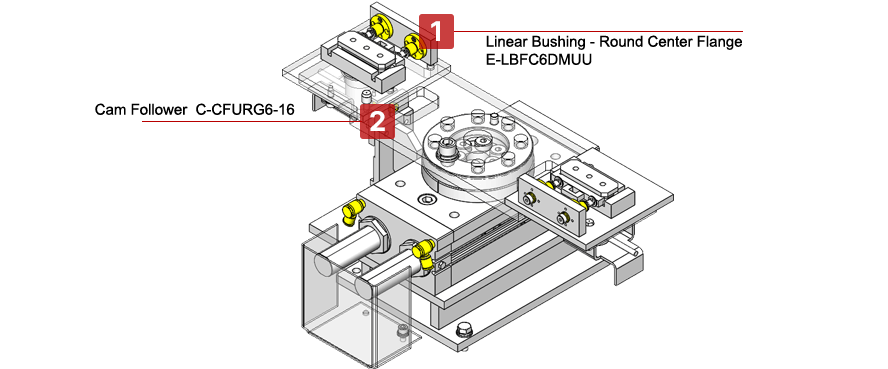

Work Transfer Jig Change Mechanism

Specifications and Features

Purpose/Function

Positioning/Clamp Drive/Actuation

Automatic locking after changing jig settings using an electronic holder.
The workpiece fixing jig settings are changed because it's a device that assembles various types of workpieces.
The setting change is carried out by a 6-axis robot that also handles workpiece transfer.
Due to payload limitations, it's not possible to install a mechanism to bolt the jig.
Maintain jig suction using magnetic force.
Environment/Operability: Change and maintain settings without using bolts.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Linear Bushing - Round Center Flange	E-LBFC6DMUU	Inner circle diameter dr(φ): 6 Total Length L(mm): 29 Outer tube material: Iron Outer tube surface treatment: Electroless nickel plating	4	MYR 64.28/Unit
②	Cam Follower	C-CFURG6-16	Screw part nominal (M)(mm): M6×1 Material: Carbon steel Fastening method: With screwdriver slot Basic load rating Cr(dynamic)(kN): 4.9 Allowable rotational speed (rpm): 3800	1	MYR 24.34/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Round, Center Flanged Linear Bushings, Medium MYR 64.28 /Unit Shipping: 13 Days

2 Cam Followers Straight Slot, Crown MYR 21.27 /Unit Shipping: 1 Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
