Simple Sealing Door

Specifications and Features

Purpose/Function

Positioning/Clamp

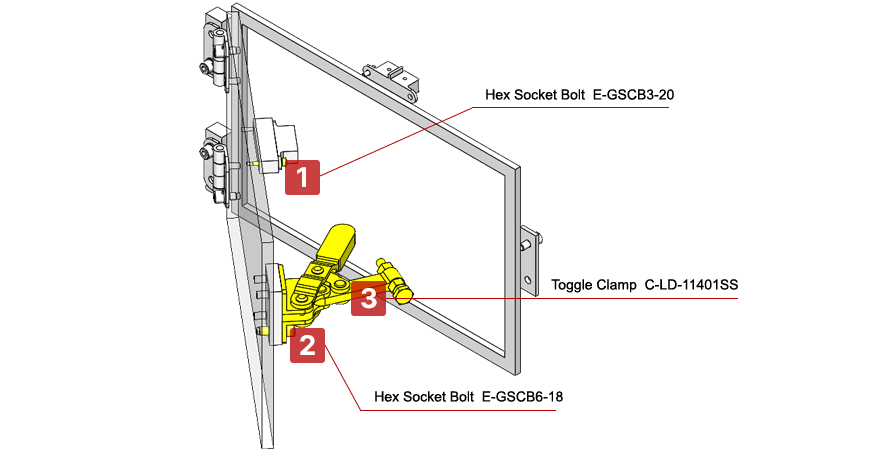

" Simple sealing door using a toggle clamp.
The toggle clamp side is inside the booth, and the worker inside releases the clamp and opens the door.
Consider the number of toggle clamps and the clamping pressure depending on the door size.
The area where the toggle clamp tip touches is equipped with a support plate inside the booth.
Environment/Operability: Used for ventilation when working in a soundproof booth. When closed, the inside protrudes, so caution is required for safety. "

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Hex Socket Bolt	E-GSCB3-20	Screw nominal (M): 3 Length L(mm): 20 Material: Stainless steel RoHS10 compliant	2	MYR 0.25/Unit
②	Hex Socket Bolt	E-GSCB6-18	Screw nominal (M): 6 Length L(mm): 18 Material: Stainless steel RoHS10 compliant	4	MYR 0.67/Unit
③	Toggle Clamp	C-LD-11401SS	Clamp bolt size: M6 Material: Stainless steel (body), Stainless steel (bolt) Clamping pressure (N): 980	1	MYR 38.61/Unit

※ Kindly check MISUMI eCatalog for latest information.
