Work Inversion Mechanism

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp

The returned work is reversed behind the chuck with a magnet, and the unsprung weight after the reverse is released with a stopper and a cylinder in the chuck section.
Used to change work piece orientation during the manufacturing line.
The stopper of the work reversal mechanism is cushioned using a shock absorber.

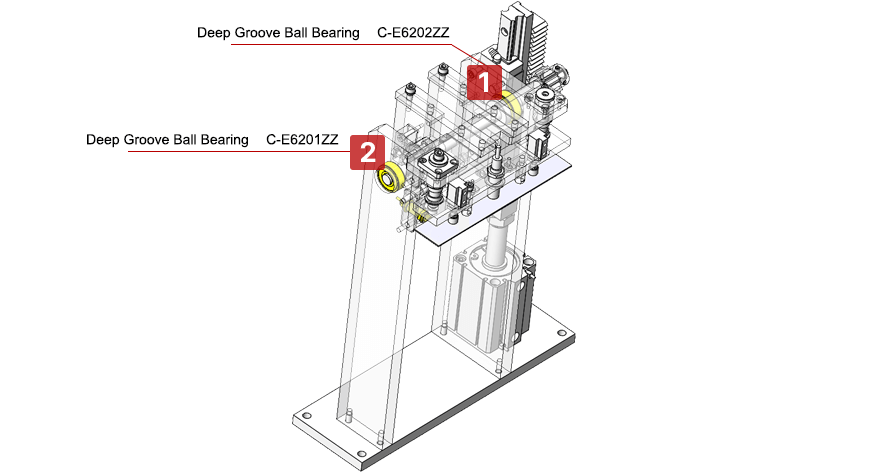

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-E6202ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 5430 Allowable rotational speed (RPM): 8000	1	MYR 3.47/Unit
②	Deep Groove Ball Bearing	C-E6201ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 4270 Allowable rotational speed (RPM): 8000	2	MYR 2.98/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Ball Bearings MYR 1.80/Unit Shipping: 1 Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
