Manual 3-Axis Unit

Specifications and Features

Purpose/Function

Positioning/Clamp

Move the table horizontally and vertically by turning the handle.
Easy horizontal operation using a grip-mounted handle and easy vertical operation using a dedicated ratchet-mounted wrench.

※ This example is for design reference only. Equipment components may differ from the actual shape.

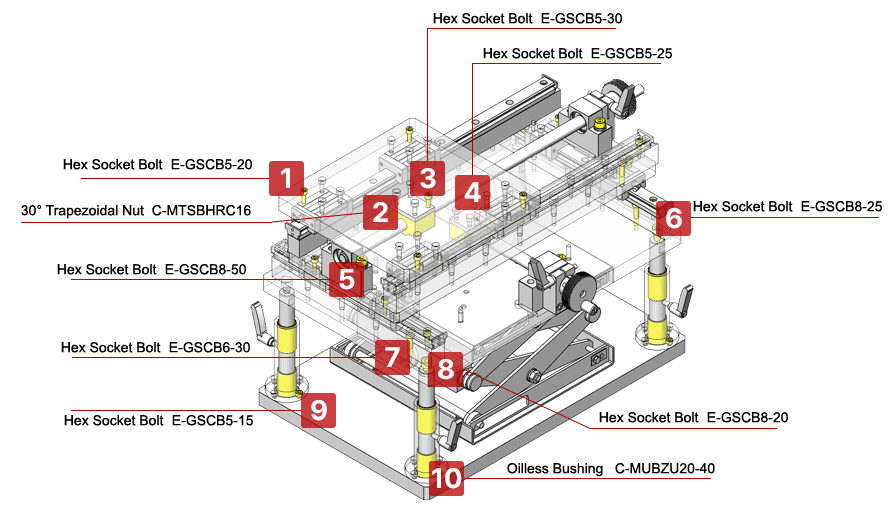

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Hex Socket Bolt	E-GSCB5-20	Screw nominal (M): 5 Length L(mm): 20 Material: Stainless steel RoHS10 compliant	16	MYR 0.79/Unit
②	30° Trapezoidal Nut	C-MTSBHRC16	Screw nominal diameter D(φ): 16 Pitch(mm): 3 Material: Copper alloy Surface treatment: None	2	MYR 149.74/Unit
③	Hex Socket Bolt	E-GSCB5-30	Screw nominal (M): 5 Length L(mm): 30 Material: Stainless steel RoHS10 compliant	4	MYR 0.58/Unit
④	Hex Socket Bolt	E-GSCB5-25	Screw nominal (M): 5 Length L(mm): 25 Material: Stainless steel RoHS10 compliant	4	MYR 0.52/Unit
⑤	Hex Socket Bolt	E-GSCB8-50	Screw nominal (M): 8 Length L(mm): 50 Material: Stainless steel RoHS10 compliant	8	MYR 2.24/Unit
⑥	Hex Socket Bolt	E-GSCB8-25	Screw nominal (M): 8 Length L(mm): 25 Material: Stainless steel RoHS10 compliant	3	MYR 1.34/Unit
⑦	Hex Socket Bolt	E-GSCB6-30	Screw nominal (M): 6 Length L(mm): 30 Material: Stainless steel RoHS10 compliant	22	MYR 0.88/Unit
⑧	Hex Socket Bolt	E-GSCB8-20	Screw nominal (M): 8 Length L(mm): 20 Material: Stainless steel RoHS10 compliant	1	MYR 1.34/Unit
⑨	Hex Socket Bolt	E-GSCB5-15	Screw nominal (M): 5 Length L(mm): 15 Material: Stainless steel RoHS10 compliant	50	MYR 0.36/Unit
⑩	Oilless Bushing	C-MUBZU20-40	Inner diameter d(φ): 20 Total length L(mm): 40 Material: Brass Operating temperature range (°C): -40 to 150	8	MYR 50.96/Unit

※ Kindly check MISUMI eCatalog for latest information.
