XY Stage

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp Processing

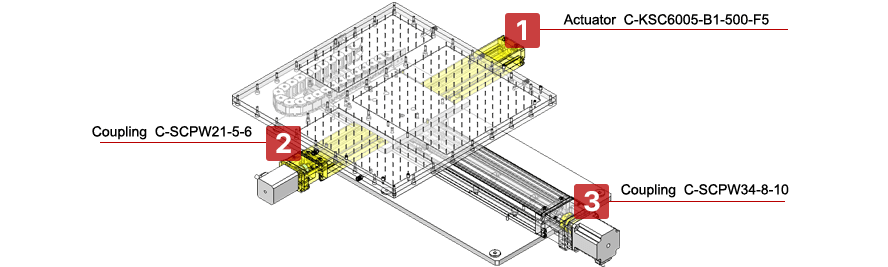

Quickly move the vacuum table holding the workpiece to the preset XY position.
Move the vacuum table to any XY position to process the workpiece.
Between the two tables, there are three spaces connected to the suction holes on the table surface.
By switching the valves connected to each space ON/OFF, workpieces of different sizes can be held by suction.
Select an actuator that can withstand the moments at the processing point.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Actuator	C-KSC6005-B1-500-F5	Drive method: Ball screw Cover: Yes Lead (mm): 5 Repetitive positioning accuracy (μm): ±10 Motor mounting type: In-line type	1	MYR 1508.88/Unit
②	Coupling	C-SCPW21-5-6	Outer diameter A(φ): 21 Allowable torque range (Nm): 0.05~1.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000	1	MYR 123.66/Unit
③	Coupling	C-SCPW34-8-10	Outer diameter A(φ): 34 Allowable torque range (Nm): 3.01~5.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000	1	MYR 160.70/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Single Axis Actuators KS60 Standard/KSC60 With Cover MYR 37.53 /Unit Shipping: 5 Days

2 Disc Couplings High Regidity Double Disc, Clamping Type MYR 123.66 /Unit Shipping: 1 Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
