Durability Test

MISUMI's economical slide rails are formed using high-quality press molds, ensuring excellent precision in finished product assembly. Even after 50,000 reciprocating movements, smooth sliding is possible without deformation in appearance for normal use.
Test conditions: Samples are precisely mounted on durability testing equipment, with a 24.5KG load applied to the drawer, performing continuous push-pull reciprocating motion at 12 cycles per minute.
Changes in the sample are observed and the product condition is recorded when reaching the specified number of cycles.

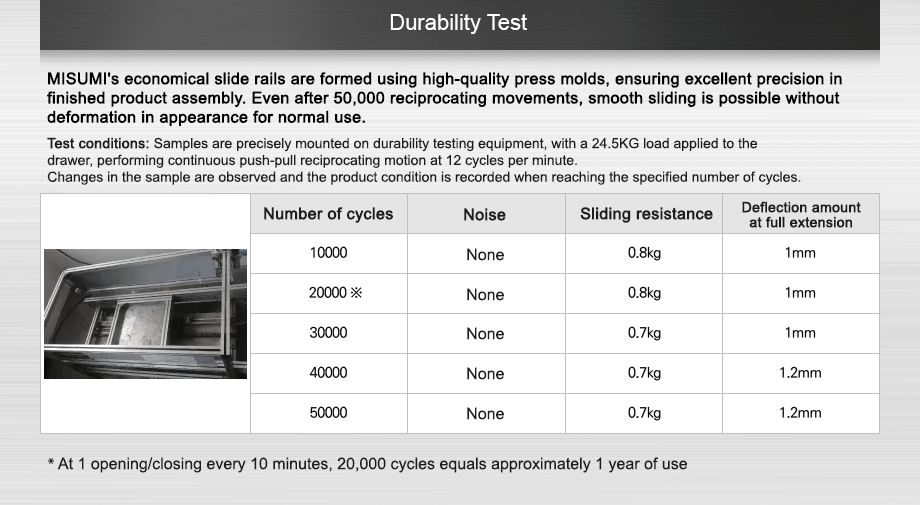

Number of cycles	Noise	Sliding resistance	Deflection amount at full extension
10000	None	0.8kg	1mm
20000 ※	None	0.8kg	1mm
30000	None	0.7kg	1mm
40000	None	0.7kg	1.2mm
50000	None	0.7kg	1.2mm

* At 1 opening/closing every 10 minutes, 20,000 cycles equals approximately 1 year of use.

Salt Spray Test

MISUMI's Economy Series slide rails do not rust even after 24 hours of salt spray testing and have excellent rust resistance.

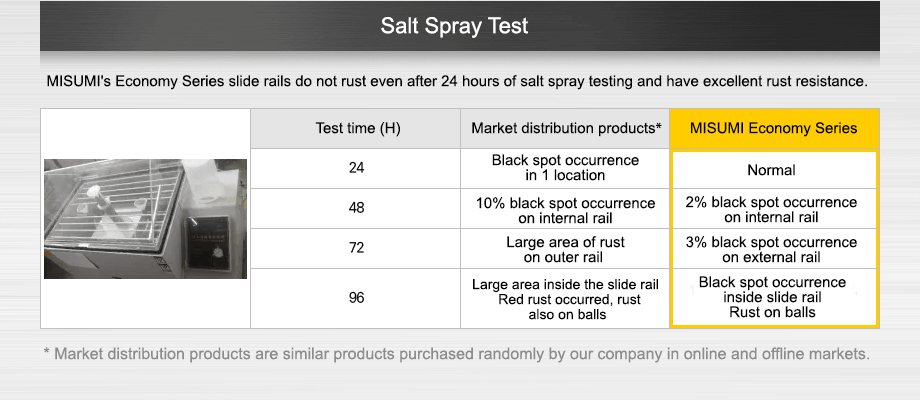

Test time (H)	Market distribution products*	MISUMI Economy Type
24	Black spot occurrence in 1 location	Normal
48	10% black spot occurrence on internal rail	2% black spot occurrence on internal rail
72	Large area of rust on outer rail	3% black spot occurrence on external rail
96	Large area inside the slide rail Red rust occurred, rust also on balls	Black spot occurrence inside slide rail Rust on balls

* Market distribution products are similar products purchased randomly by our company in online and offline markets.

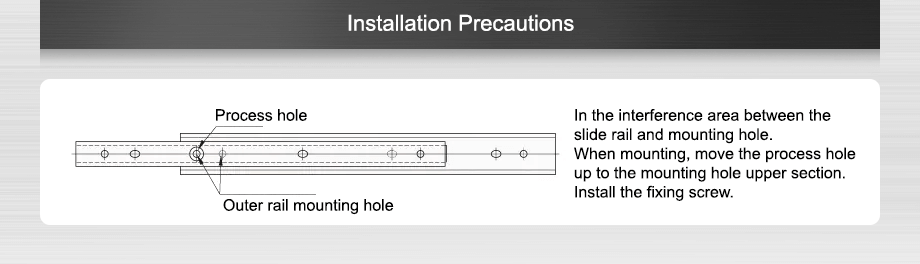

In the interference area between the slide rail and mounting hole.
When mounting, move the process hole up to the mounting hole upper section.
Install the fixing screw.

usage precautions

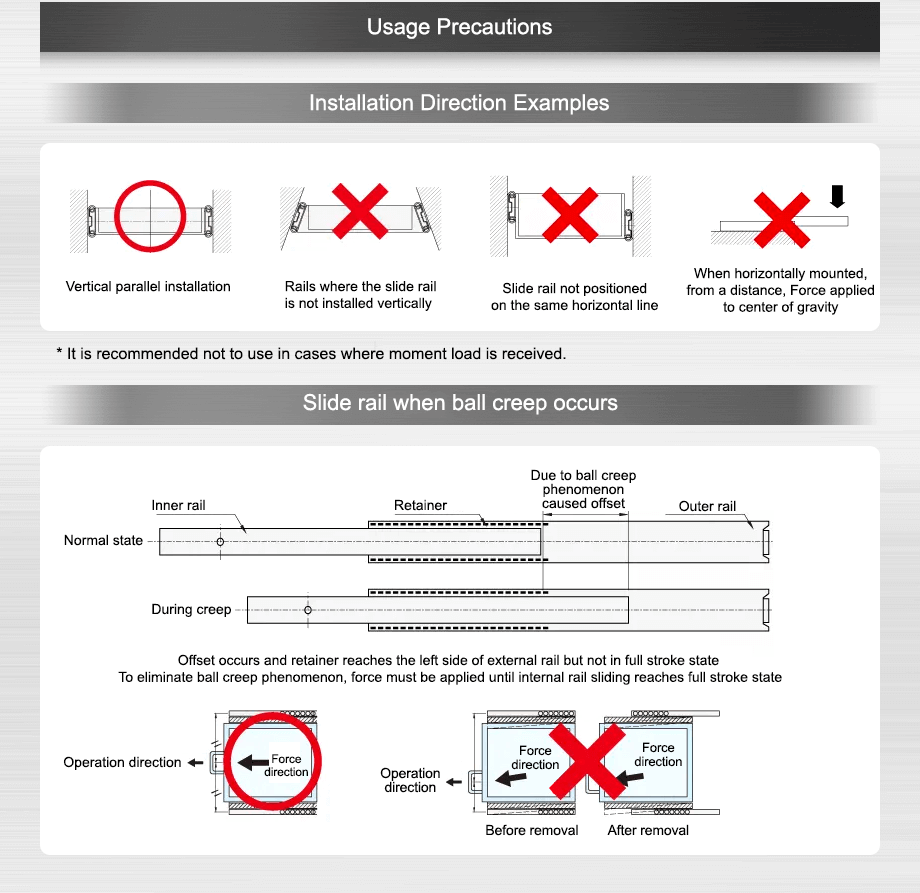

Installation Direction Examples

Vertical parallel installation
Rails where the slide rail is not installed vertically
Slide rail not positioned on the same horizontal line
When horizontally mounted, from a distance, Force applied to center of gravity
* It is recommended not to use in cases where moment load is received.

Slide rail when ball creep occurs

Offset occurs and retainer reaches the left side of external rail but not in full stroke state.
To eliminate ball creep phenomenon, force must be applied until internal rail sliding reaches full stroke state.
