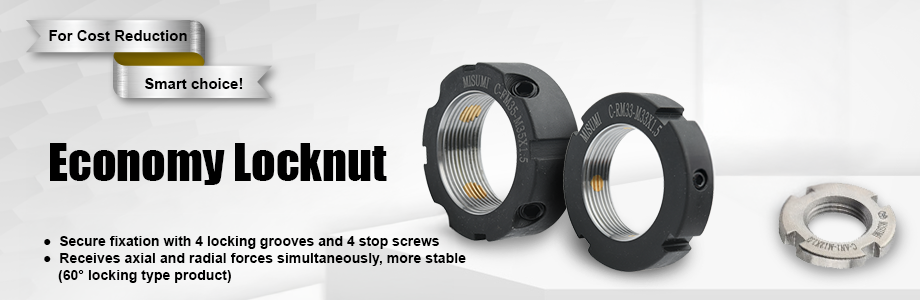

Economy Lock Nut
Secure fixation with 4 locking grooves and 4 stop screws
Receives axial and radial forces simultaneously, more stable (60° locking type product)

Product Features

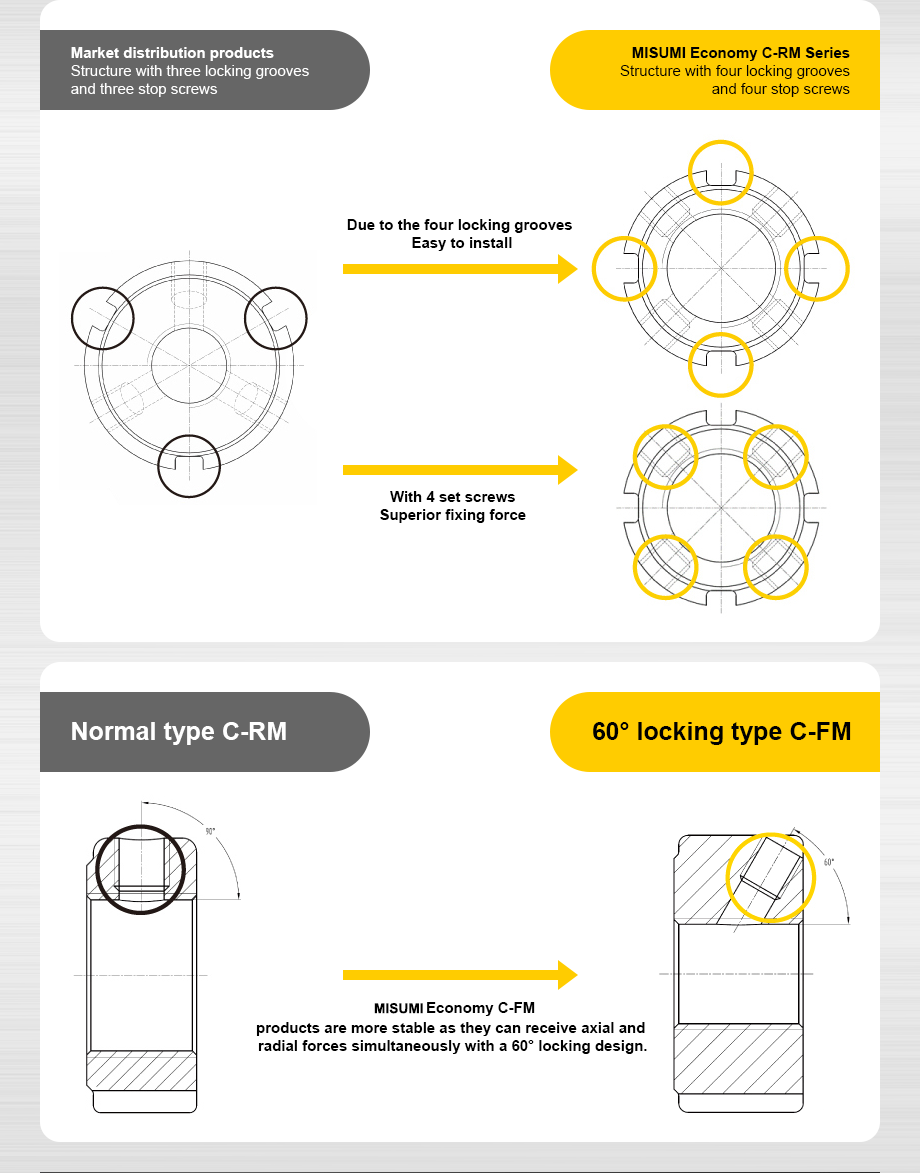

Market distribution※: Structure with 3 locking grooves and stop screws

Misumi Economy C-RM Series: Structure with 4 locking grooves and stop screws
Easy to install with 4 locking grooves
Excellent fixing force with 4 stop screws

Standard C-RM
60˚ locking type C-FM: Misumi Economy C-FM products are more stable because they can receive axial force and radial force at the same time with a 60˚ locking design

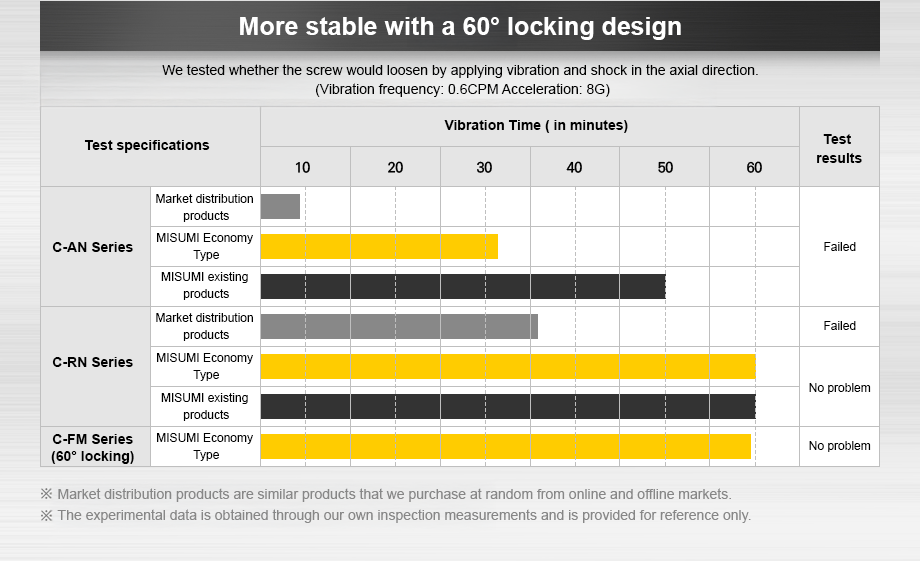

Test Results

We tested whether the screw would loosen by applying vibration and shock to the axial direction. (Vibration frequency: 0.6cpm Acceleration: 8G)

Test Specification		Vibration Time (min)	Test Results
C-AN series	Market distribution	9	Dropped
	Misumi Economy Type	32
	Misumi standard Products	50
C-RM Series	Market Distribution Products*	36	Dropped
	Misumi Economy Type	60	No problem
	Misumi existing product	60	No problem
C-FM Series (60˚ Locking)	Misumi Economy Type	59	No Problem

※ Market distribution products are similar products that we purchased randomly from online and offline markets.
※ Experimental data is obtained through our own inspection and measurement and is provided for reference only.
