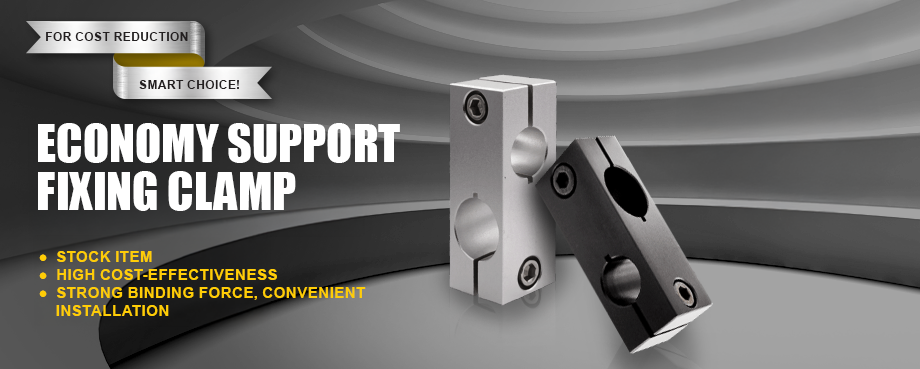

economy support fixing clamp Smart choice for cost reduction Economical stake fixing clamp In stock High cost-effectiveness Strong binding force Convenient installation

Product Features

product advantages

Product Advantages

Market Distribution VS Economy

New Product Advantage 1: Strong Bonding

Significantly Improved Bonding
Market Distribution 1.0KN 17% up New Product 1.17KN
Customer's Voice
Customer
When using, the shaft tolerance is unstable or the inside diameter of the support clamp is large, so the shaft cannot be fastened.
Misumi
Misumi's support clamp can be used with confidence even in situations that require high quality. The fastening force has been strengthened by undercut processing.
Binding force experiment
Experimental method
Tighten the support fixing clamp with the specified tightening torque, then apply downward pressure vertically to the shaft. Measure the axial load when the shaft is displaced. The value is the maximum binding force. Experimental conditions
Measured inner diameter: φ20mm Torque unit: 7.54N∙m (aluminum)

※ Experimental data is obtained through Misumi's tests and is provided for reference only.
※ Marketed products are similar products that our company purchased arbitrarily from online or offline markets.
new product advantage

New product advantage 2: Stable quality

Market distribution Economy
BURR Yes No
Scratch Yes No
MISUMI Economy Products: As always, MISUMI quality is guaranteed.
Customer's Voice
Customer
There are often BURRs and scratches in the market distribution. If the end user finds it, it will have a bad effect on the company's image, so we purchase more and select them.
Misumi
Misumi's high quality is recognized by the industry, so you can be assured and buy only as much as you need.

New Product Advantage 3: Added Black Anodized Surface Treatment

Market distribution Economy
White anodized Yes Yes
Black anodized Very little Yes
Customer's Voice
Customer
Our end users have a demand for black fixture parts, but all of the fixture fixing clamps on the market are white anodized products, so we order them from an outsourcing company and process them separately.
Misumi
Misumi's economical fixture fixing clamps have both white anodized and black anodized products, so they can be applied to various needs.

Recommended Products

Note: Please check the current specification, price and delivery date again from the product page.
