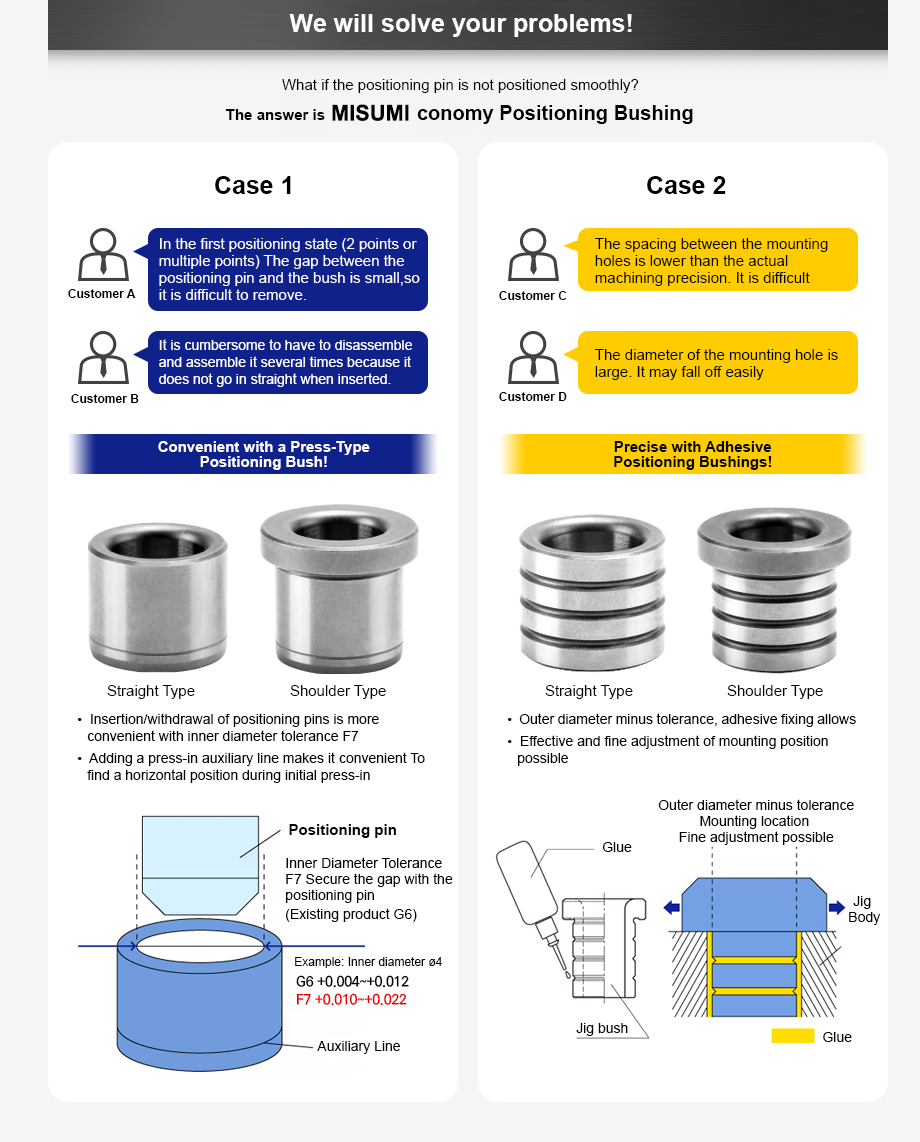

We'll solve your problem!

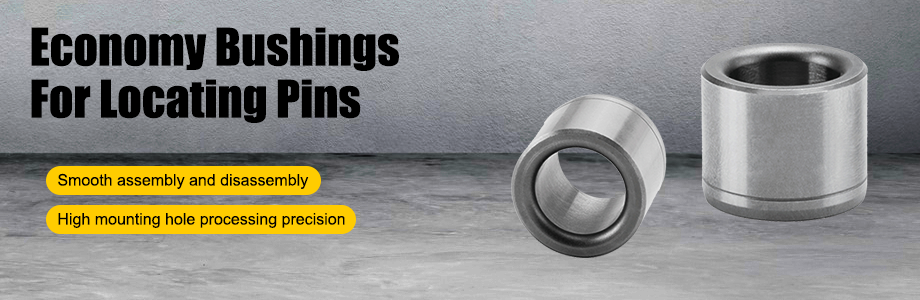

What if the positioning pin is not positioned smoothly? The answer is Misumi economical positioning bushing

Case 1

Customer A: In the first positioning state (2 points or multiple points), the gap between the positioning pin and the bushing is small, making it difficult to remove.
Customer B: It is inconvenient to repeat disassembly and assembly several times because it does not go in straight when pressed in.

Convenient with a press-in positioning bushing!

The inner diameter tolerance of F7 makes insertion/withdrawal of the positioning pin more convenient
The press-in auxiliary line is added to make it convenient to find the horizontal position during initial press-in.

Case 2

Customer C: The gap between the mounting holes is lower than the actual processing precision, which is difficult. Customer D: The diameter of the mounting hole is large, so it can easily fall off.

Precisely with an adhesive positioning bushing!

Outer diameter minus tolerance, adhesive fixing allows effective fine adjustment of mounting position
