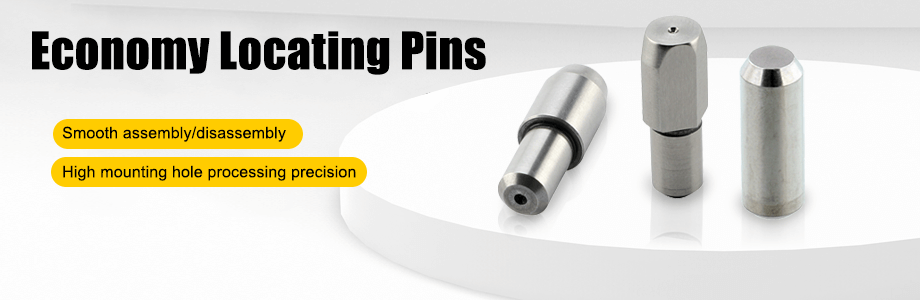

Economy Locating Pins Economy Locating Pins
Smooth assembly/disassembly
High mounting hole processing precision

Product Features

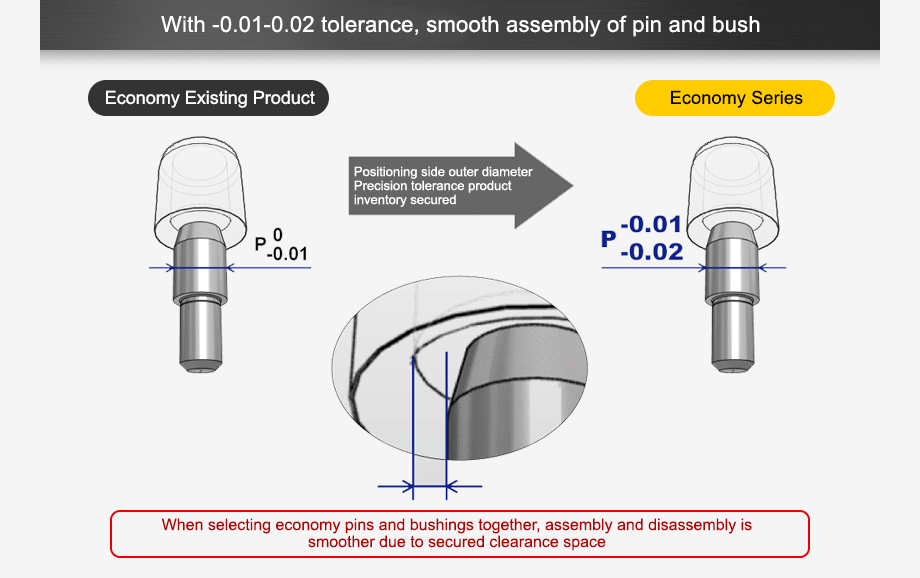

With -0.01-0.02 tolerance, smooth assembly of pin and bush

With -0.01-0.02 tolerance, smooth assembly of pin and bush

MISUMI existing products
p 0 -0.01
Economy Series
Positioning side outer diameter
Precision tolerance product inventory secured
p -0.01 -0.02
When selecting economy pins and bushings together, assembly and disassembly is smoother due to secured clearance space

Design Case

Take a closer look Multi Directional Adjustment Unit

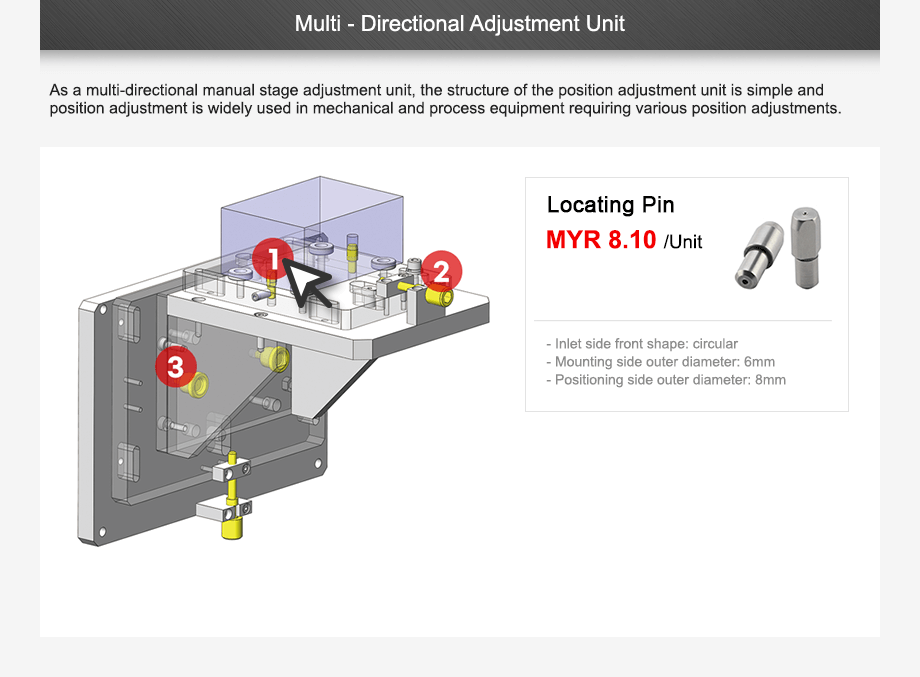

Multi Directional Adjustment Unit As a multi-directional manual stage adjustment unit, the structure of the position adjustment unit is simple and position adjustment is widely used in mechanical and process equipment requiring various position adjustments
Locating Pin: MYR 8.10 /Unit, Tax excluded
- Inlet side front shape: circular
- Mounting side outer diameter: 6mm
- Positioning side outer diameter: 8mm
