Economy angle plate
Lightweight, high strength, low price, new specifications
(!)Due to Microsoft's end of support for Internet Explorer 11 on 15/06/2022, this site does not support the recommended environment.
- [Announcement] MISUMI Malaysia website new user interface. Clearer navigation, easy product search and more. Explore now! May contact us at (60) 3 7890 6399 for any inquiries.
Product Features
lightweight

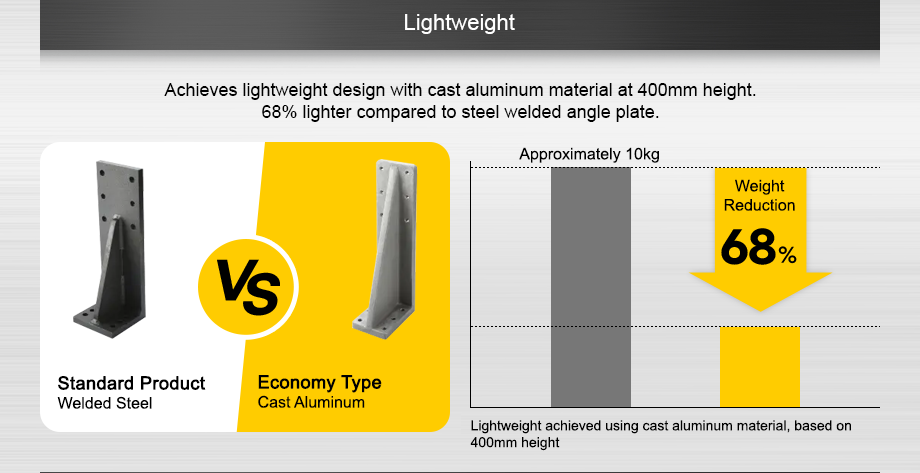

Lightweight implementation with cast aluminum material 68% lighter than iron welded angle plate for 400mm heightExisting product - welded iron VS economical - cast aluminum
Lightweight implementation with cast aluminum material, based on 400mm height
High strength

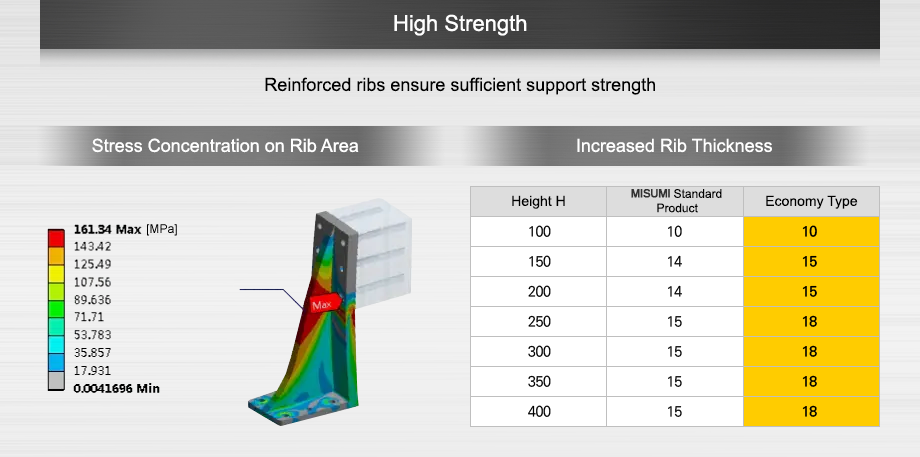

Ensuring sufficient support strength by reinforcing ribs Stress concentration in rib areaIncreased rib thickness
| Height H | Misumi standard product | Economy type |
|---|---|---|
| 100 | 10 | 10 |
| 150 | 14 | 15 |
| 200 | 14 | 15 |
| 250 | 15 | 18 |
| 300 | 15 | 18 |
| 350 | 15 | 18 |
| 400 | 15 | 18 |

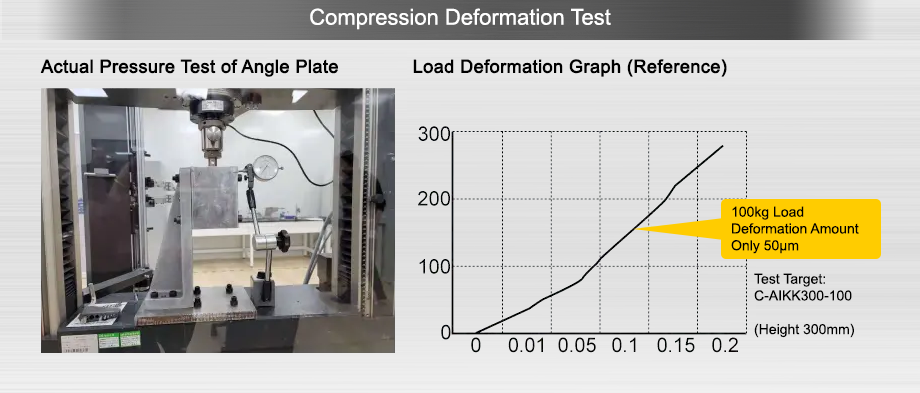

Compression deformation test
Angle plate internal pressure actual testLoad deformation graph (reference) 100kg load deformation amount is only 50㎛
