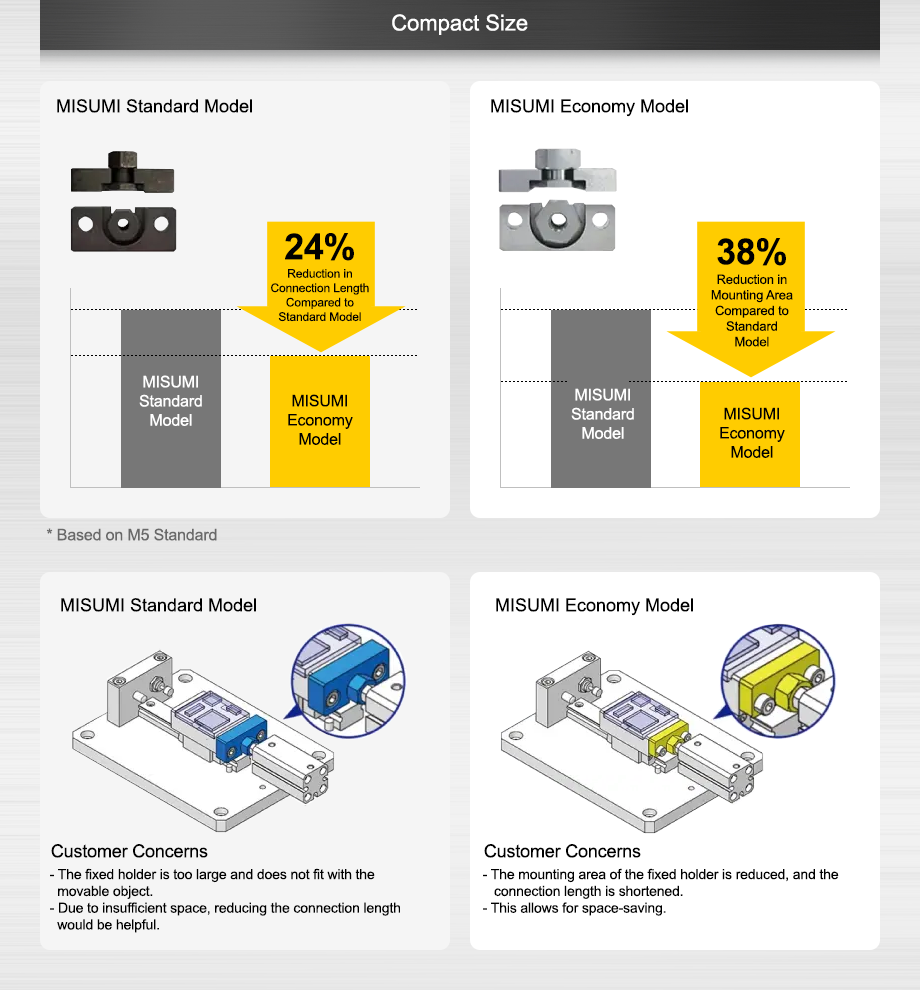

Compact size

Misumi existing product

Misumi existing product Connection length shortened by 24% compared to existing product Misumi economy type

Misumi economy type

Misumi existing product Mounting area reduced by 38% compared to existing product Misumi economy type

※ Based on M5 standard

Misumi existing product

Customer's concern The fixed holder is too big and cannot be assembled with the passive body, so the space is insufficient, so I would like the connection length to be shortened.

Misumi Economy Type

Economy Type Compact Design The mounting surface of the fixed holder is reduced and the connection length is also shortened, saving space.

Guaranteed strength

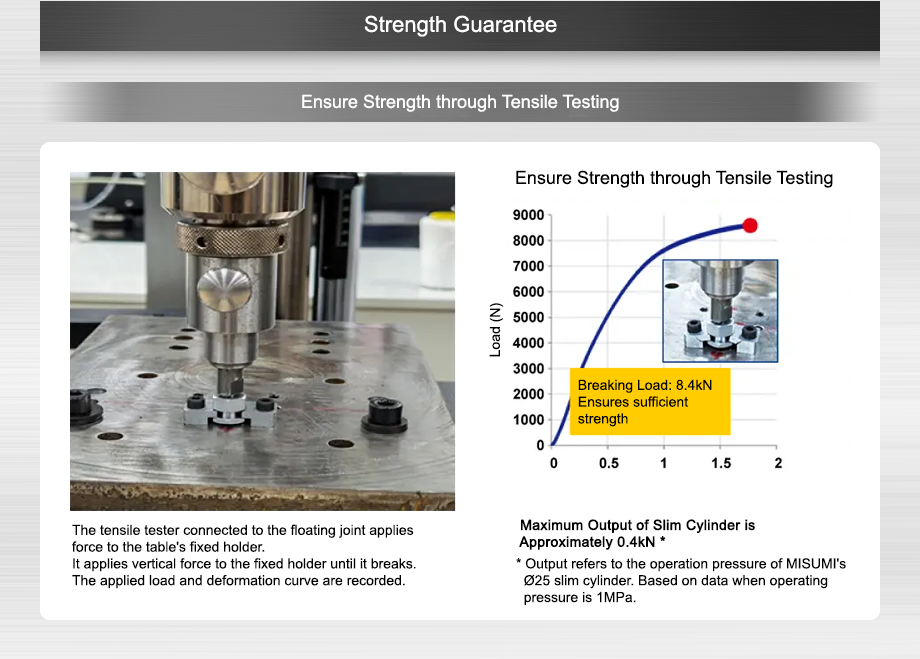

Guaranteed strength through tensile test

A tensile tester connected to a floating joint applies a vertical upward force to the fixed holder until the fixed holder on the table is destroyed, and records the applied load and the deformation curve.
Tensile test - load and displacement graph
Destructive load: 8.4kN Sufficient strength guaranteed The maximum output of the slim cylinder is approximately 0.4kN ※ ※ The output refers to the figure when the operating pressure of Misumi's slim cylinder Ø25 is 1Mpa

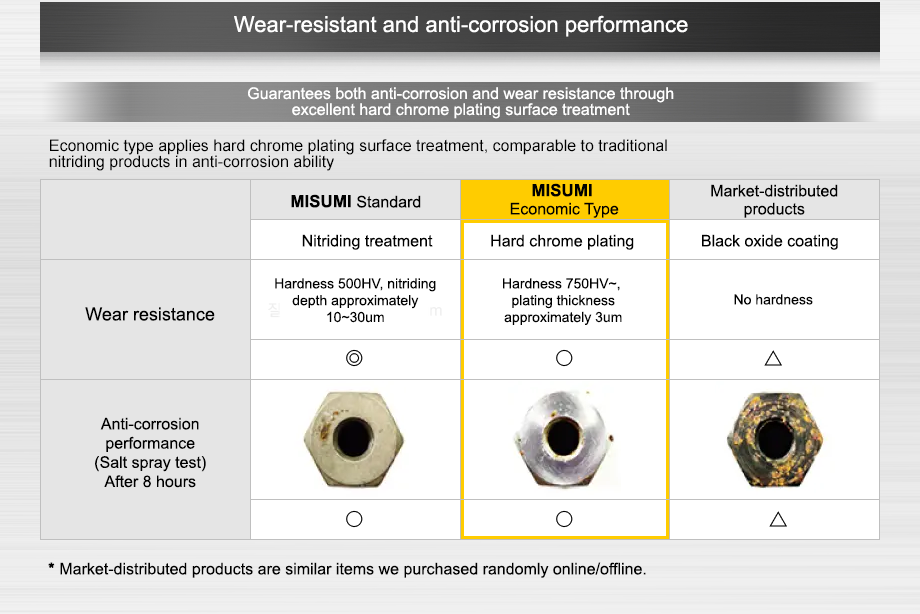

Wear-resistant rust prevention performance

Ensures both rust prevention and wear resistance through hard chrome plating surface treatment with excellent wear resistance

The economy type applies hard chrome plating surface treatment, and its rust prevention performance is equivalent to that of existing nitriding products.

	Misumi existing products	Misumi economy type	※Market distribution products
	Nitriding treatment	Hard chrome plating	Black salt
Wear resistance	Hardness 500HV~Nitriding depth approx. 10~30um	Hardness 750HV~Plating layer thickness approx. 3um	No hardness
	◎	○	△
Rust prevention performance (salt fog test) 8H after	○	△

※ Market distribution products are similar products that our company purchased randomly from online and offline markets.

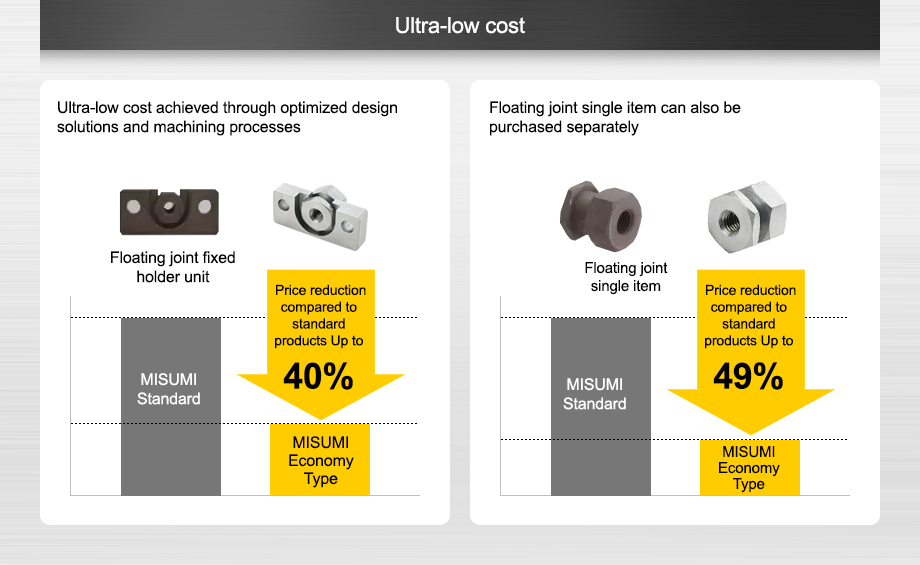

Ultra low price

Ultra low price implementation with optimized design method and processing process

Floating joint fixed holder unit
Misumi existing product Price reduction up to 40% compared to existing product Misumi economy type

Floating joint unit can also be purchased separately

Floating joint unit
Misumi existing product Price reduction up to 49% compared to existing product Misumi economy type
