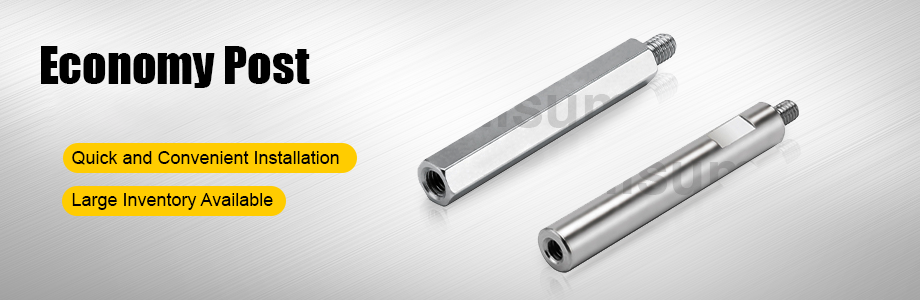

Economy post
Fast and convenient installation
Large stock

Product Features

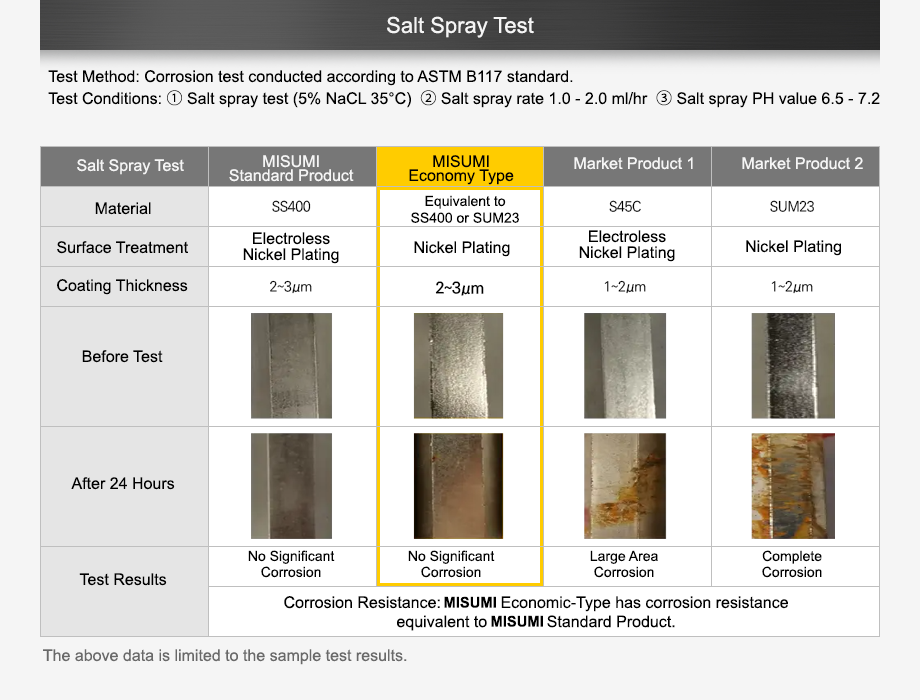

Salt Spray Test

Test Method: Corrosion test is conducted according to the test method of ASTM B117 standard.
Test Conditions: ① Salt Spray Test (5%NaCL35℃) ② Salt water volume 1.0~2.0ml/hr ③ Salt water PH value 6.5~7.2

Salt Spray test	MISUMI existing product	MISUMI economic type	Market distribution product 1	Market distribution product 2
Material	SS400	equivalent to SS400 or SUM23	S45C	SUM23
Surface treatment	Electroless nickel plating	Nickel plating	Electroless nickel plating	Nickel plating
Plating thickness	2~3μm	2~3μm	1~2μm	1~2μm
Before Test	Photo	Photo	Photo	Photo
Test 24H	Photo	Photo	Photo	Photo	Photo
Measurement Results	No Obvious Corrosion	No Obvious Corrosion	Large Area Corrosion	Complete Corrosion
Measurement Results	Corrosion Resistance: Misumi Economy Type has corrosion resistance equivalent to Misumi's existing products.

※ The above data is limited to the test results of samples only.

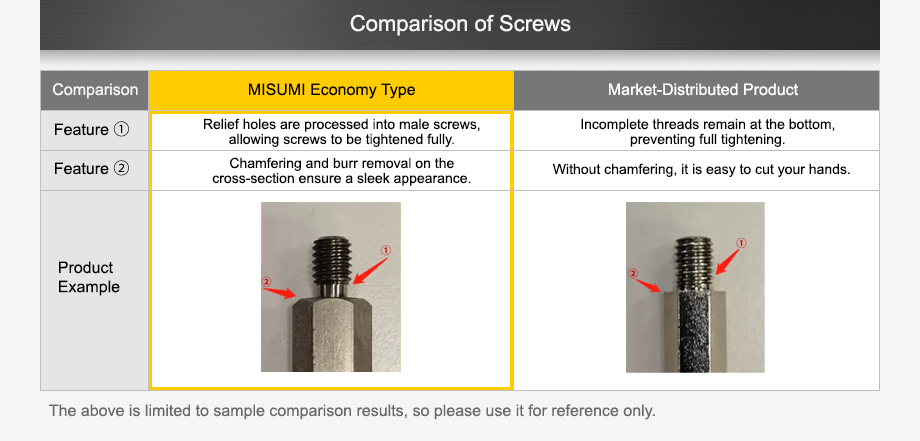

Screw Comparison

Comparison	Misumi Economy Type	Market Distribution Products
Feature ①	The male screw has a relief groove, so the screw can be tightened all the way.	The screw cannot be tightened completely because an incomplete screw part remains on the bottom surface.
Feature ②	The cross-section is chamfered and the burr is removed, giving it a beautiful appearance.	It is easy to cut your hand because there is no chamfering.
Product Example	Photo	Photo

※ The above is limited to the sample comparison results, so please use it for reference only.

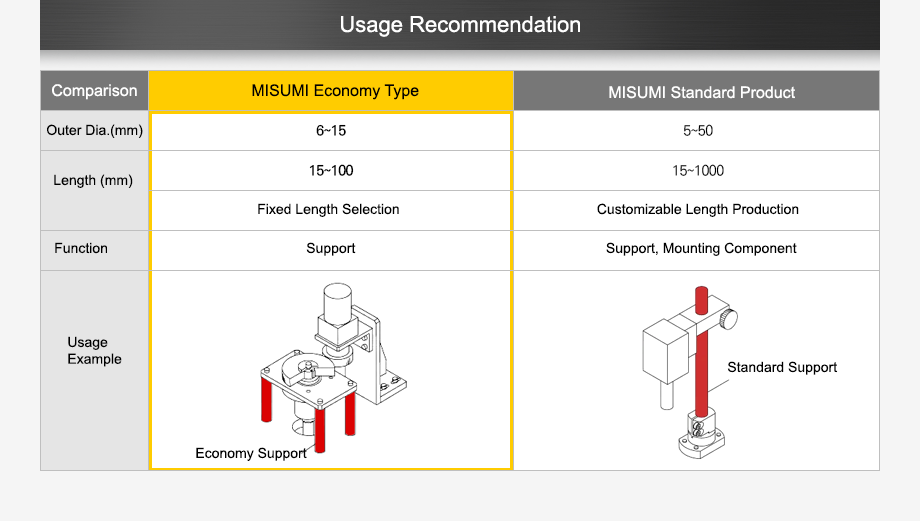

Recommended use

Comparison	Misumi Economy	Misumi Conventional Products
Outer diameter/corresponding side (mm)	6~15	5~50
Length (mm)	15~100	15~1000
Length (mm)	Fixed length selection	Custom length production possible
Function	Support	Support, Mounting Parts
Usage Examples	Economy Support	Standard Support

Design Case

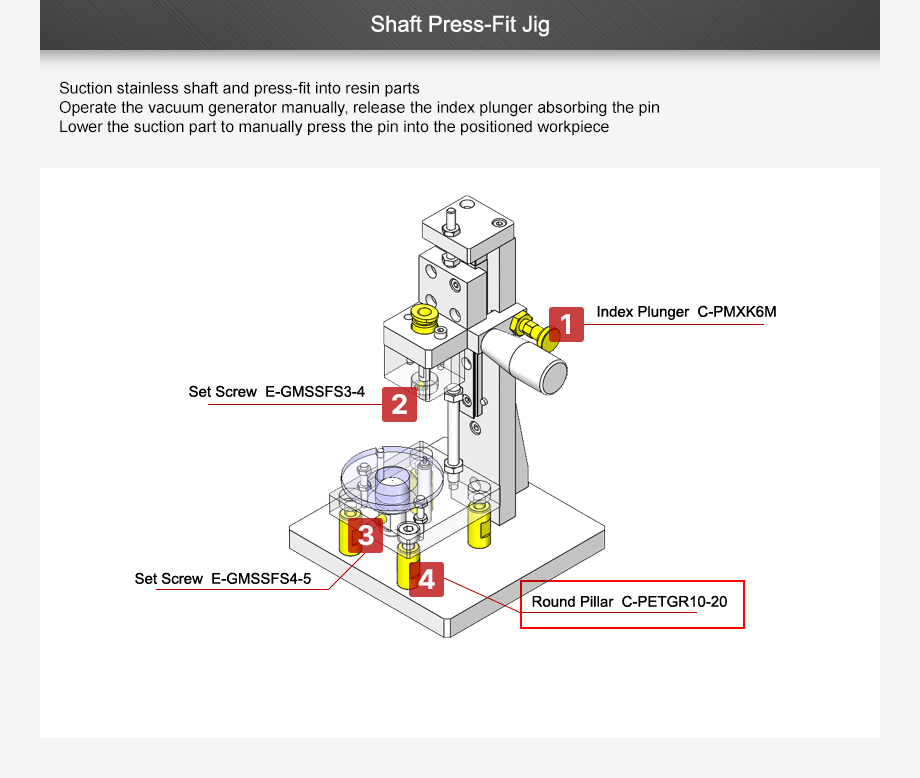

take a closer look Shaft press fit jig

Shaft press-in jig Adsorb stainless steel shaft and press it into resin parts Turn on the vacuum generator manually, release the index plunger that adsorbs the pin, and lower the adsorption part to manually press the pin into the positioned workpiece
