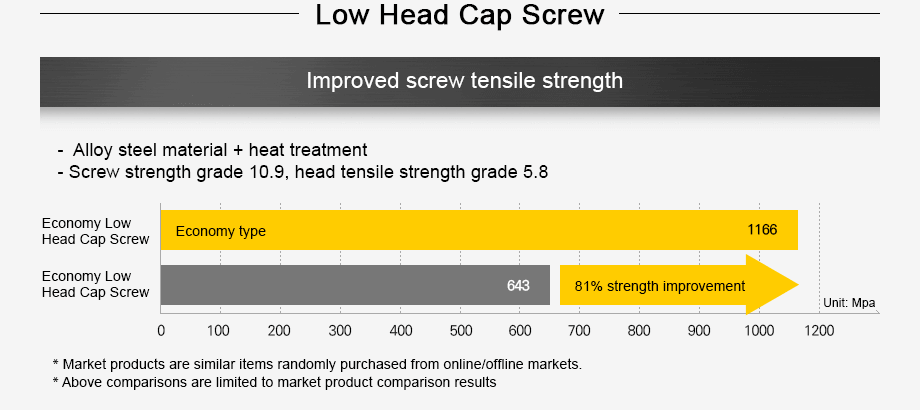

Improved screw tensile strength

- Alloy steel material + heat treatment - Screw strength grade 10.9, head tensile strength grade 5.8

Economy Low-head Bolt Economy 1166

Market Distribution Strength 643 Improved 81%

※ Market products are similar items randomly purchased from online/offline markets.
※ Above comparisons are limited to market product comparison results

Maximum braking torque greatly improved

Screws don't easily come loose due to relatively large maximum brake torque.

Economy Low-head bolt Economy 3.8

Market distribution 2.6 Economy Strength increase 46%

※ Market products are similar items randomly purchased from online/offline markets.
※ Above comparisons are limited to market product comparison results.

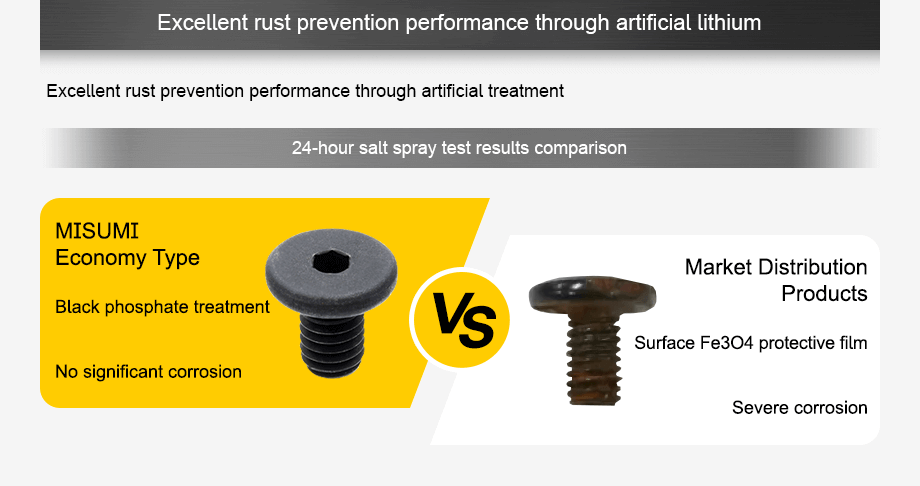

Excellent Rust Prevention Performance through Artificial Lithium

Excellent rust prevention performance through artificial treatment

24-hour salt spray test results comparison

MISUMI Economical Type, Black phosphate treatment, No significant corrosion

Market distribution products, Surface Fe3O4 protective film, Severe corrosion

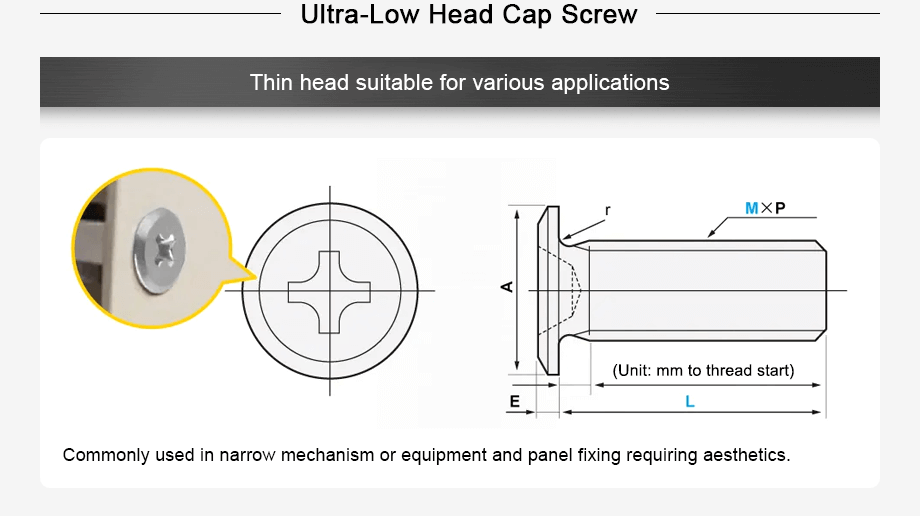

Thin head suitable for various applications

Commonly used in narrow mechanism or equipment and panel fixing requiring aesthetics

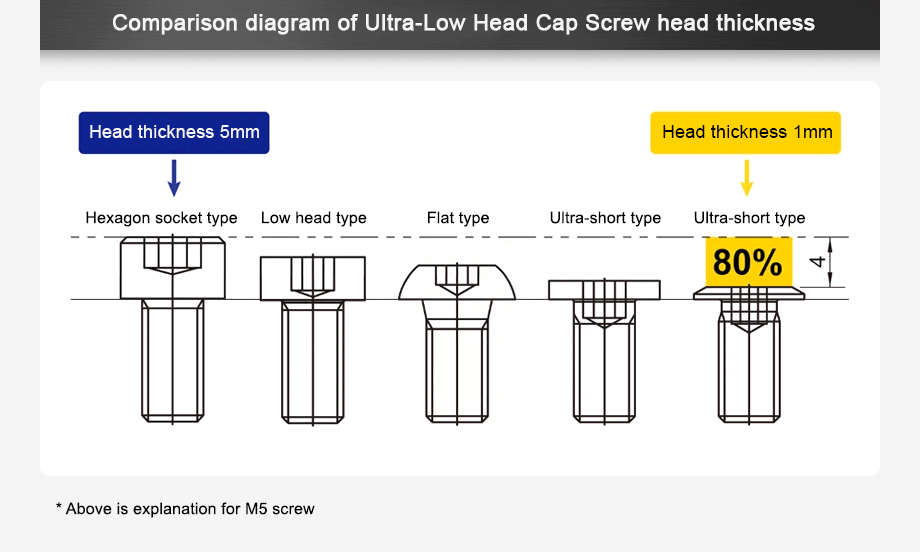

Comparison diagram of Ultra-Low Head Cap Screw head thickness

Head thickness 5mm
Head thickness 1mm
Hexagon socket type, Low head type, Flat type, Ultra-short type, Ultra-short type, 80%
※ Above is explanation for M5 screw

Alloy steel material + Heat-treated screw strength is grade 10.9
Overall improvement in strength prevents easy damage to the head

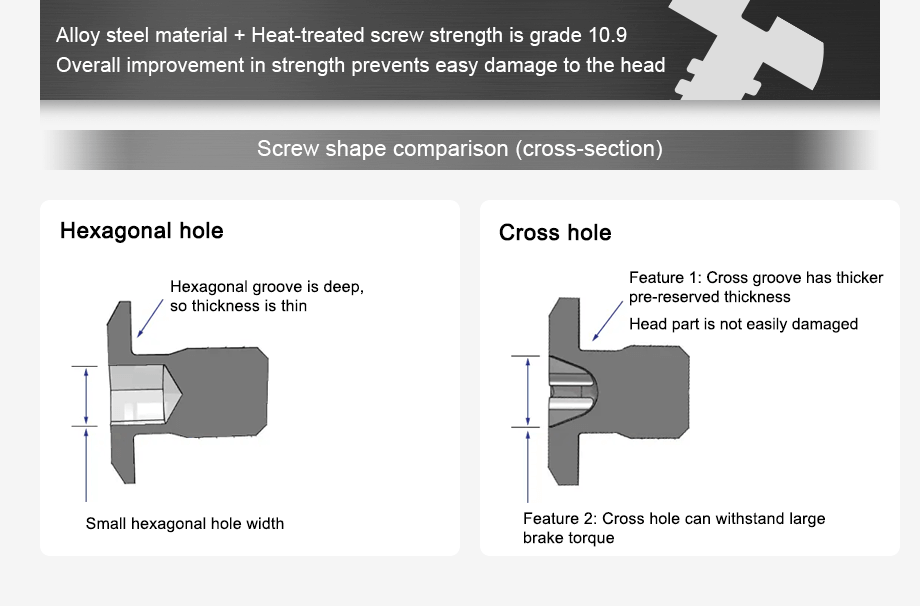

Screw shape comparison (cross-section)

Hexagonal hole

Hexagonal groove is deep, so thickness is thin
Small hexagonal hole width

Cross hole

Feature 1: Cross groove has thicker pre-reserved thickness, Head part is not easily damaged
Feature 2: Cross hole can withstand large brake torque
