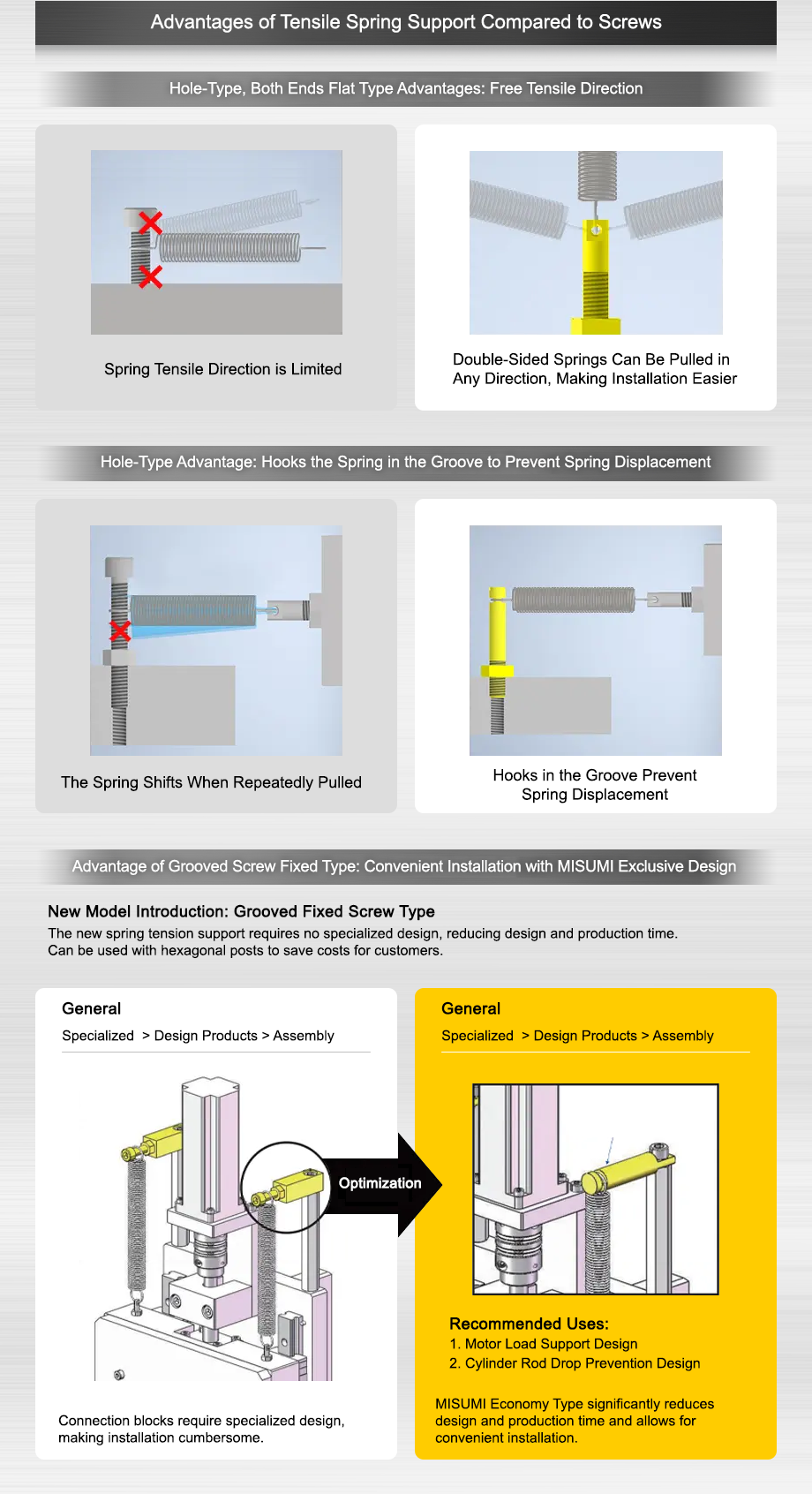

Advantages of tension spring supports compared to screws

Advantages of double-ended flat-type holes: Free tension direction

The tension direction of the spring is limited
Double-sided springs can be pulled in either direction, making them easier to install

Double-sided springs can be pulled in either direction, making them easier to install

If pulled repeatedly, the spring will move out of position
It catches on the groove and prevents the spring from moving out of position

Advantages of grooved screw-fixed type: Easy to install due to Misumi's exclusive design

Introducing the new grooved screw-fixed type
The new tension spring support saves design and manufacturing time as it does not require specialized design.
It can be used as a set with a hexagonal support, reducing the customer's cost.
General specialized design ▶ manufacturing ▶ assembly
Special design of the connecting block is required, and installation is cumbersome. Optimization
New CAD drawing selection and download ▶ Purchase ▶ Assembly
Recommended use: 1. Motor load assistance design 2. Cylinder rod drop prevention design
Misumi economic type has greatly reduced design and manufacturing time and is also convenient to install.

Excellent anti-rust performance

24-hour salt fog test results

Iron tetraoxide protective film
Black salt-treated product severely corroded
Chromate polished
Minor whitening No corrosion

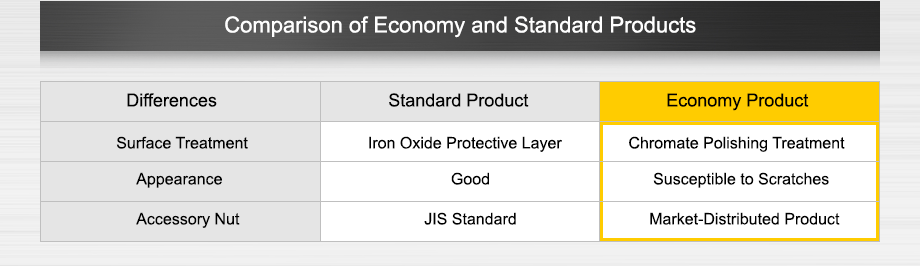

Comparison of economy products and standard products

Differences	Existing products	Light products
Surface treatment	Tetravalent trioxide protective film	Chromate polishing
Appearance	Good	Scratches such as dents may occur
Accessory nuts	JIS standards	Market products

Large stock of products, short delivery time implementation

Quantity	Existing products	Light products
6~100	3 days	1 day
101~	Separate delivery date inquiry	Separate delivery date inquiry

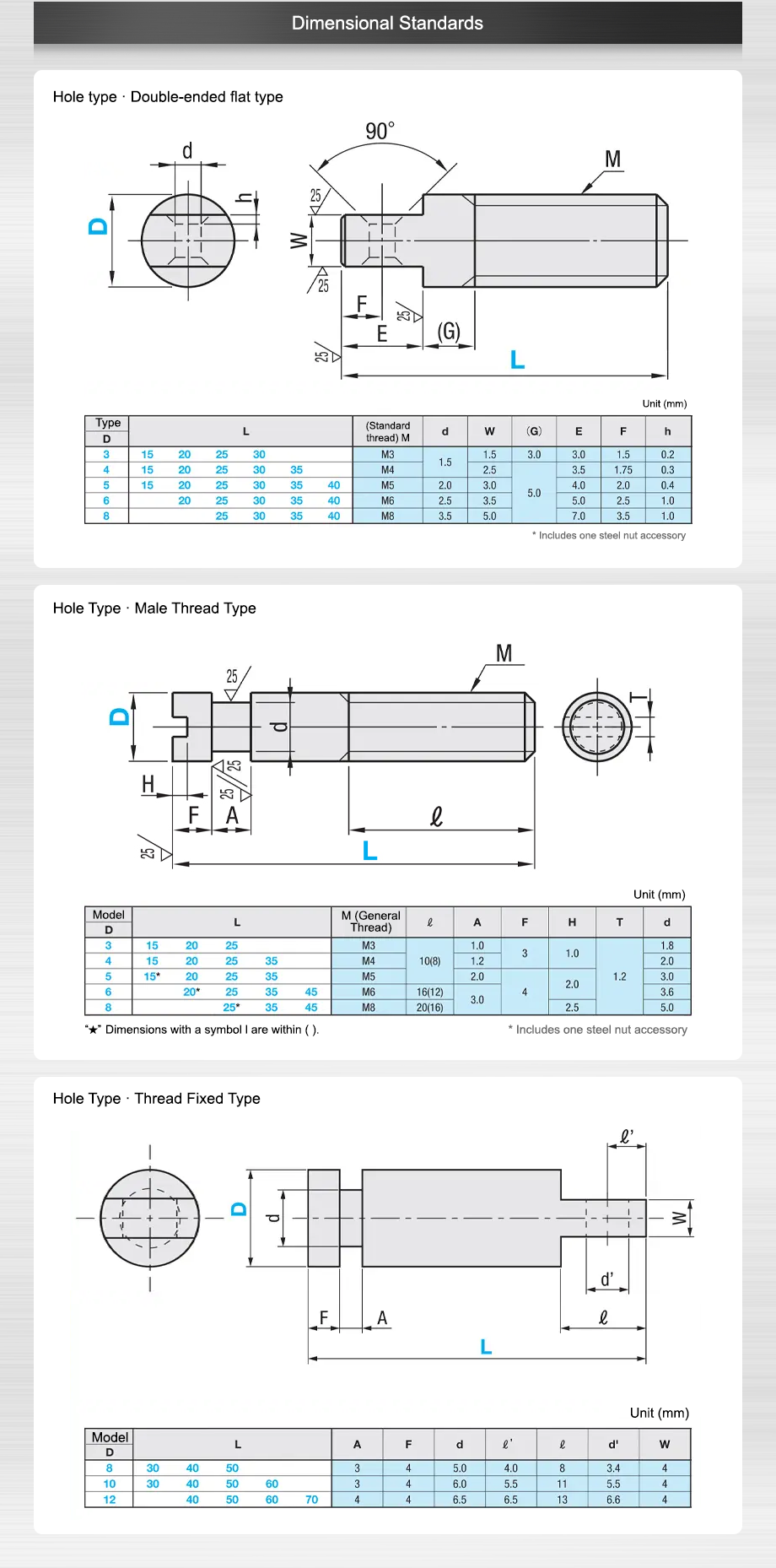

Dimension specifications

Hole type, flat on both ends ※ 1 steel nut accessory included
Groove type, male thread type ※ 1 steel nut accessory included
Groove type, screw fixed type
