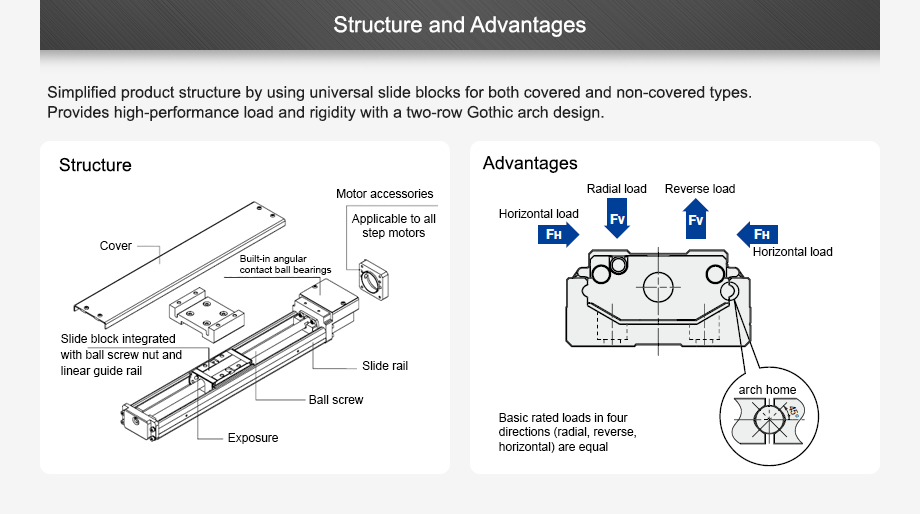

Structure and Advantages
Simplified product structure by using universal slide blocks for both covered and non-covered types.
Provides high-performance load and rigidity with a two-row Gothic arch design.
Structure, Slide block integrated with ball screw nut and linear guide rail
Built-in angular contact ball bearings
Motor accessories, Applicable to all step motors,
Exposure, Ball Screw, Slide Rail
Advantages, Workpiece lowering
86 series, Workpiece insertion, 50 series
Used for horizontal long-stroke movement of medium-sized metal workpieces
Equipped with Z-direction up-and-down functionality for consistent workpiece insertion and removal height

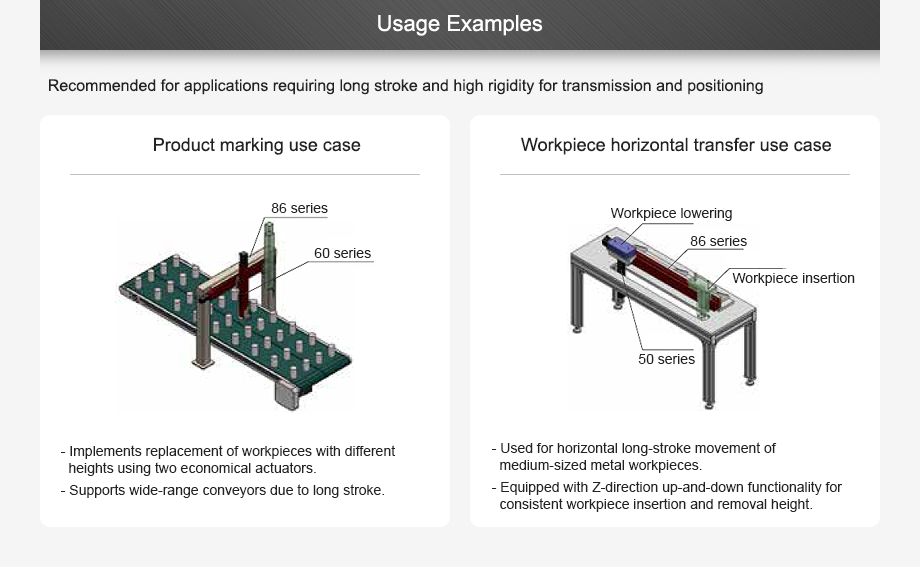

Usage Examples
Recommended for applications requiring long stroke and high rigidity for transmission and positioning.

• Product marking use case
  - Implements replacement of workpieces with different heights using two economical actuators.
  - Supports wide-range conveyors due to long stroke.
• Workpiece horizontal transfer use case
  - Used for horizontal long-stroke movement of medium-sized metal workpieces.
  - Equipped with Z-direction up-and-down functionality for consistent workpiece insertion and removal height.
