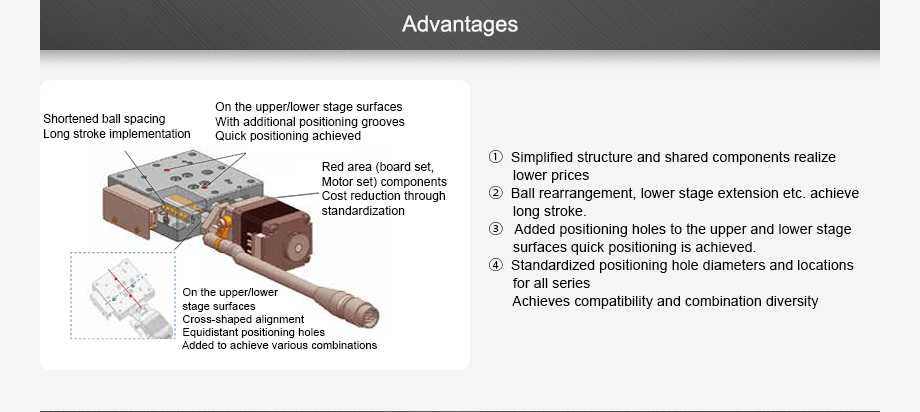

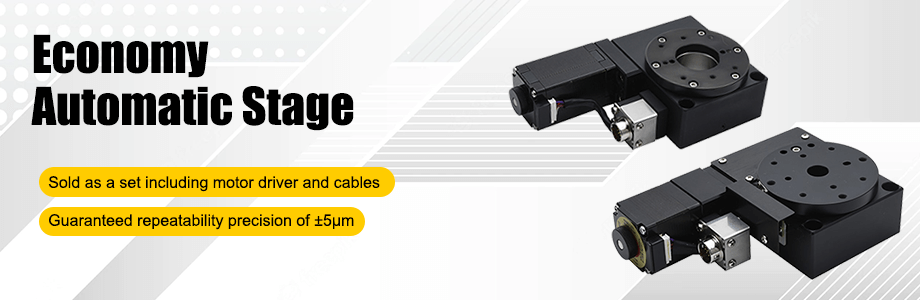

Shortened ball spacing
Long stroke implementation
On the upper/lower stage surfaces
With additional positioning grooves
Quick positioning achieved
Red area (board set, Motor set) components
Cost reduction through standardization
On the upper/lower stage surfaces
Cross-shaped alignment
Equidistant positioning holes
Added to achieve various combinations
① Simplified structure and shared components realize lower prices
② Ball rearrangement, lower stage extension etc. achieve long stroke.
③ Added positioning holes to the upper and lower stage surfaces quick positioning is achieved.
④ Standardized positioning hole diameters and locations for all series
Achieves compatibility and combination diversity

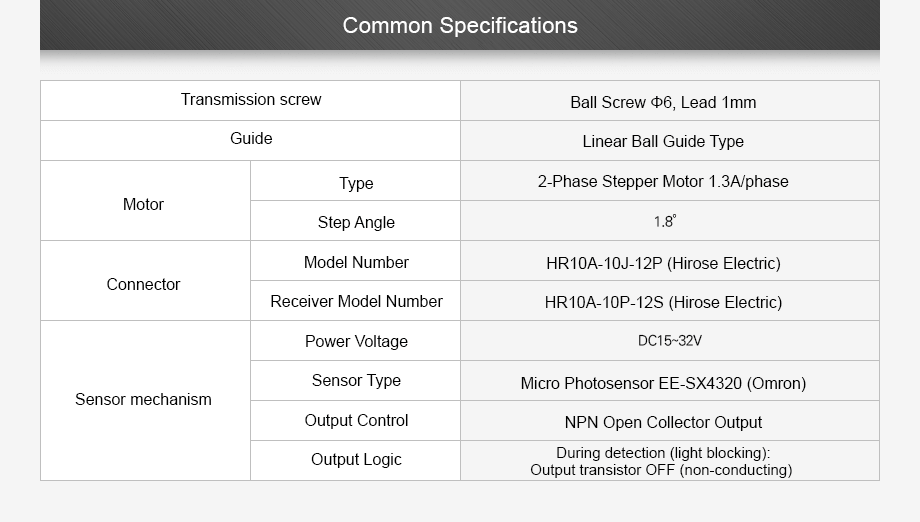

Transmission screw		Ball Screw Φ6, Lead 1mm
Guide		Linear Ball Guide Type
Motor	Type	2-Phase Stepper Motor 1.3A/phase
	Step Angle	1.8゜
Connector	Model Number	HR10A-10J-12P (Hirose Electric)
	Receiver Model Number	HR10A-10P-12S (Hirose Electric)
Sensor mechanism	Power Voltage	DC15~32V
	Sensor Type	Micro Photosensor EE-SX4320 (Omron)
	Output Control	NPN Open Collector Output
	Output Logic	During detection (light blocking): Output transistor OFF (non-conducting)

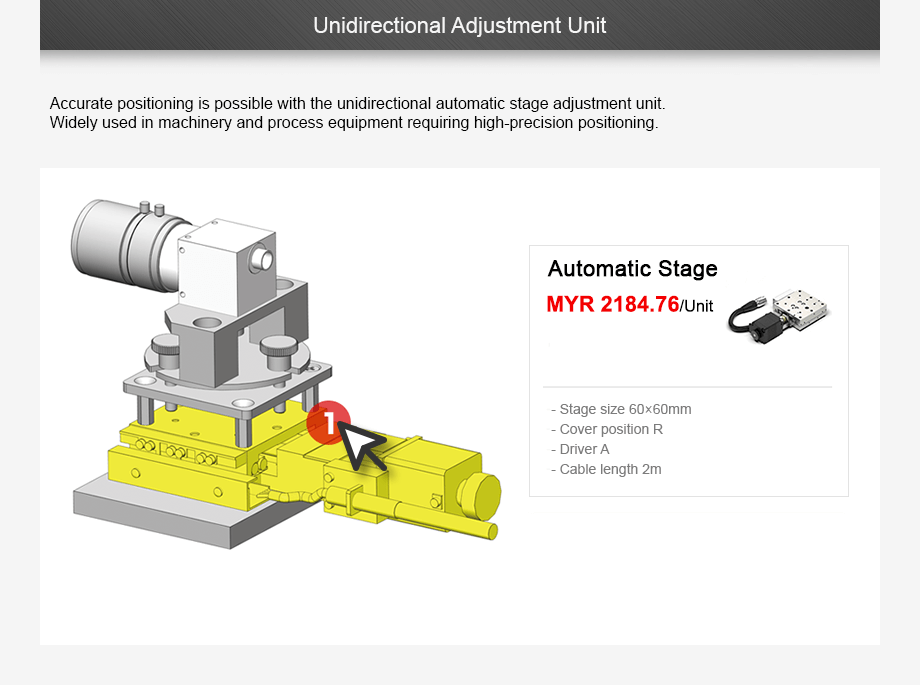

Unidirectional Adjustment Unit
Accurate positioning is possible with the unidirectional automatic stage adjustment unit.
Widely used in machinery and process equipment requiring high-precision positioning.
