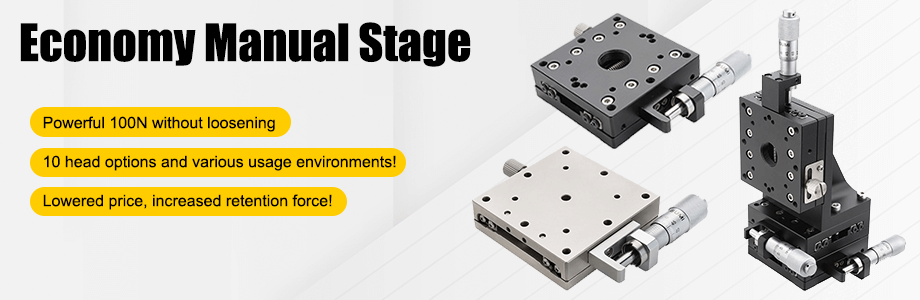

Economy Manual Stage
Powerful 100N without loosening
10 head options and various usage environments!
Lowered price, increased retention force!
Cost reduction compared to similar products

Product Features

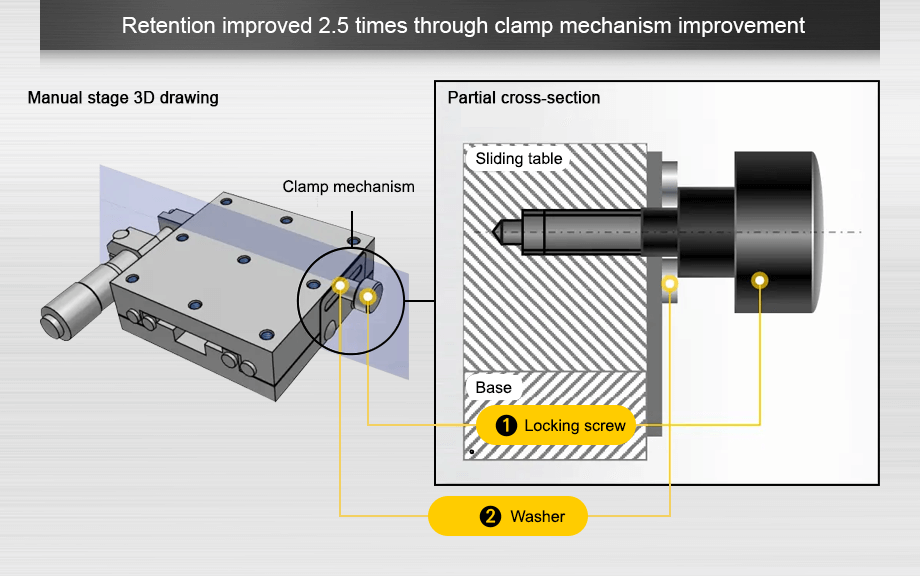

Retention improved 2.5 times through clamp mechanism improvement
Manual stage 3D drawing
Clamp mechanism
Partial cross-section
Sliding table
Base
1 Locking screw
2 Washer

problems with general manual stages After locking the locking screw, the retention force is typically weak at 40N, making it easy to loosen

Improvements in economical manual stages

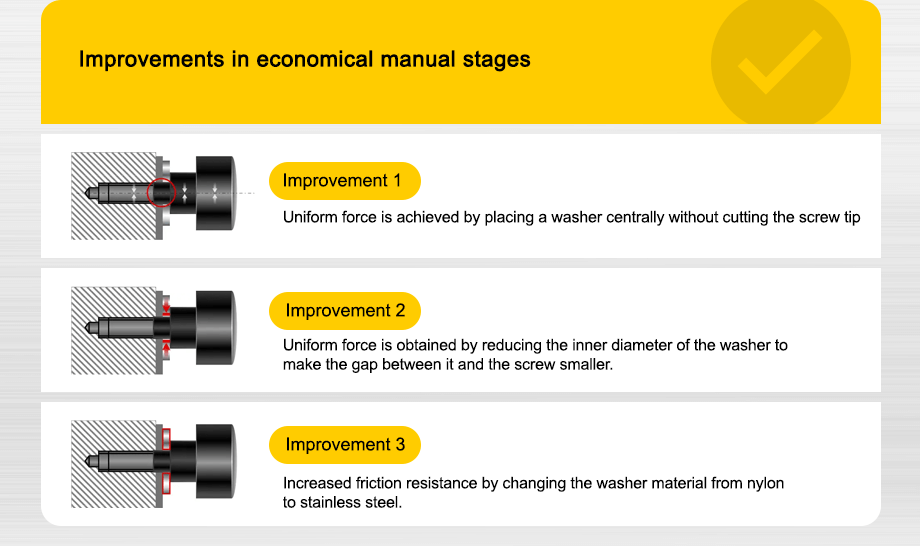

Improvement 1: Uniform force is achieved by placing a washer centrally without cutting the screw tip
Improvement 2: Uniform force is obtained by reducing the inner diameter of the washer to make the gap between it and the screw smaller.
Improvement 3: Increased friction resistance by changing the washer material from nylon to stainless steel.

Improvements to the economic manual stage 2

Improved retention force 100N
Compared to general manual stages 2.5times
※ General manual stages are similar products randomly purchased online or offline by our company

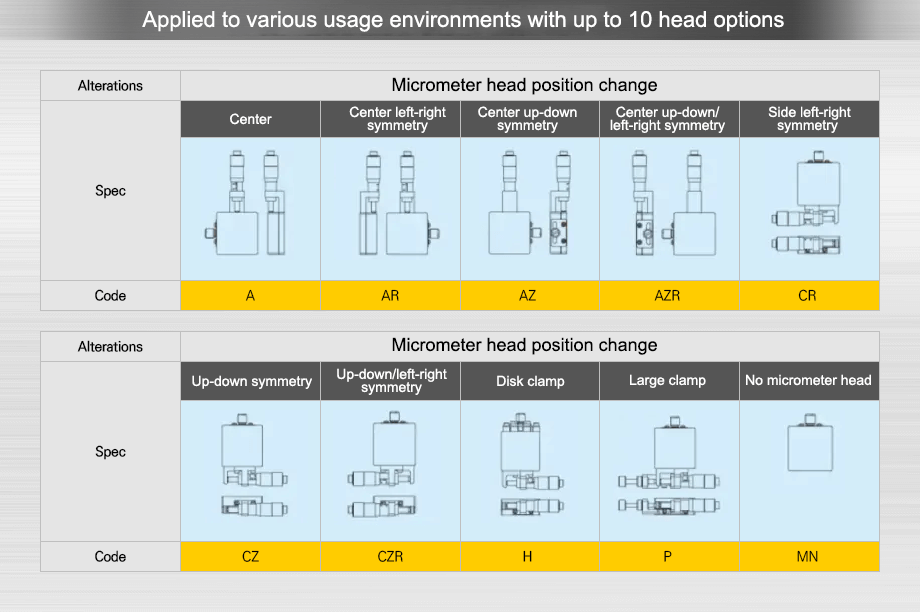

Applied to various usage environments with up to 10 head options

Alterations	Micrometer head position change
Spec	Center	Center left/right symmetry	Center up/down symmetry	Center up/down/left/right symmetry	Side left/right symmetry
Code	A	AR	AZ	AZR	CR

Alterations	Micrometer head position change
Spec	Up-down symmetry	Up-down/left-right symmetry	Disk clamp	Large clamp	No micrometer head
Code	CZ	CZR	H	P	MN

Comparison with MISUMI High-Precision Products

MISUMI High-Precision
- High precision including fine adjustment
- Suitable for equipment requiring high precision
Camera inspection with mounted lens
MISUMI Economy
- High precision including simple adjustment
- Suitable for equipment not requiring high precision
Adjustment of bond application position

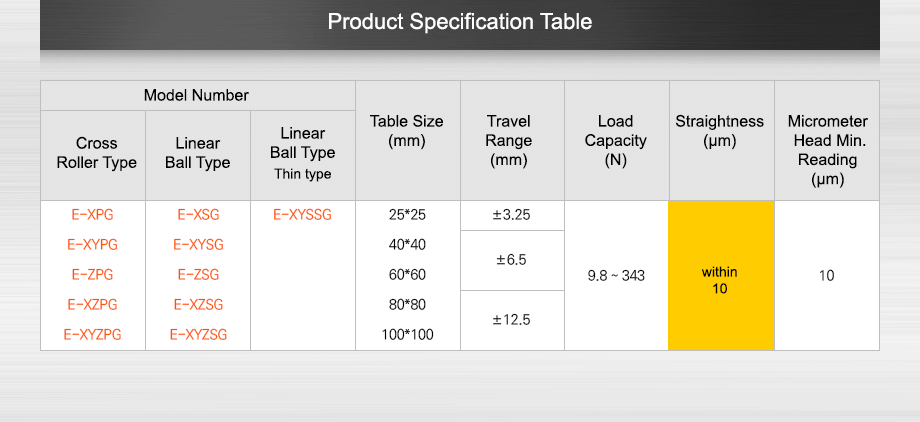

Model Number			Table Size (mm)	Travel Range (mm)	Load Capacity (N)	Straightness (μm)	Micrometer Head Min. Reading (μm)
Cross Roller Type	Linear Ball Type	Linear Ball Type Thin type
E-XPG	E-XSG	E-XYSSG	25*25	±3.25	9.8 ~ 343	within 10	10
E-XYPG	E-XYSG		40*40	±6.5
E-ZPG	E-ZSG		60*60
E-XZPG	E-XZSG		80*80	±12.5
E-XYZPG	E-XYZSG		100*100

Please refer to the product page for replacement table sizes for each product.
