Misumi India Economy

View all Economy Linear Shaft View all Economy Linear Shaft

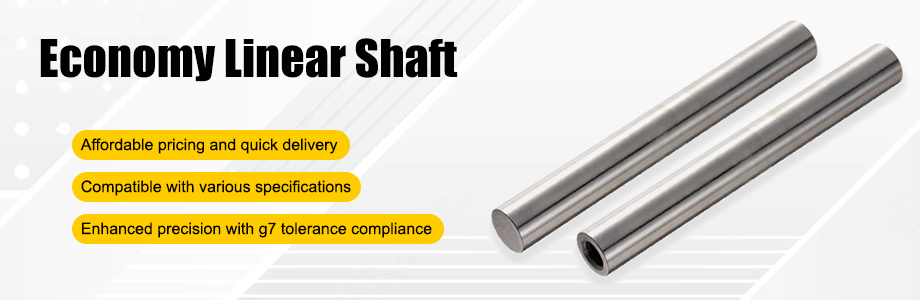

economy linear shaft Economy linear shaft
Low unit price and fast delivery
Available in various specifications

Product Features

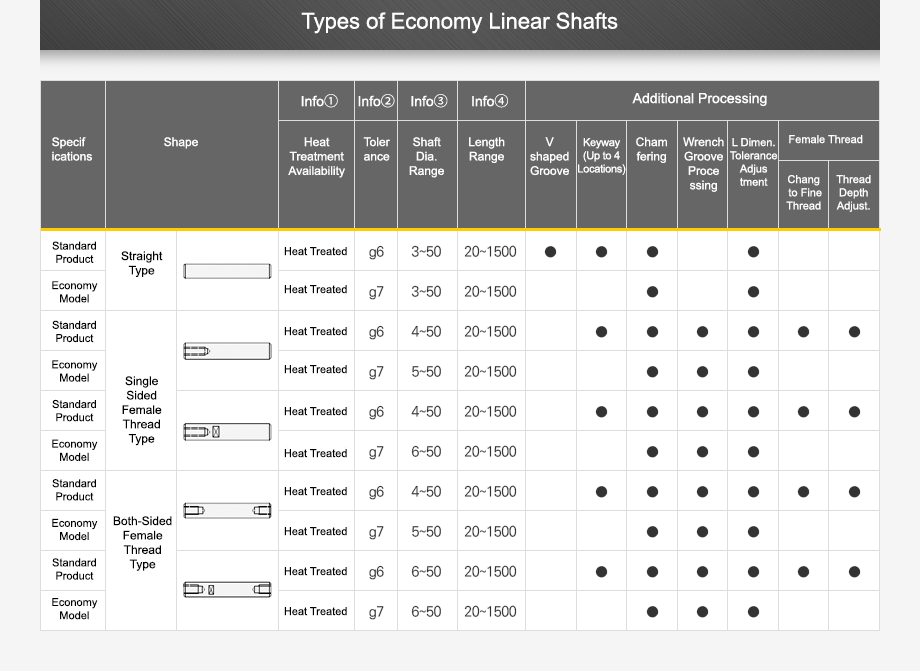

types of economy linear shafts
Specification Shape Information 1 Information 2 Information 3 Information 4 Additional processing
Heat treatment Tolerance Shaft diameter range Length range V-shaped groove Keyway (up to 4 locations) Chamfering Wrench groove processing Change in L dimension tolerance Female thread
Change to fine screw Change screw depth
Existing Straight Heat treated g6 3~50 20~1500 ● ● ● ●
Economy Heat treated g7 3~50 20~1500 ● ●
Existing product One-sided female screw type Heat treated g6 4~50 20~1500 ● ● ● ● ● ●
Economy Heat treated g7 5~50 20~1500 ● ● ●
Existing product Heat treated g6 4~50 20~1500 ● ● ● ● ● ●
Economy Heat treated g7 6~50 20~1500 ● ● ●
Existing product Double-ended female thread Heat treated g7 4~50 20~1500 ● ● ● ● ● ●
Economy Heat treated g7 5~50 20~1500 ● ● ●
Existing product Heat treated g6 6~50 20~1500 ● ● ● ● ● ●
Economy Heat treated g7 6~50 20~1500 ● ● ●

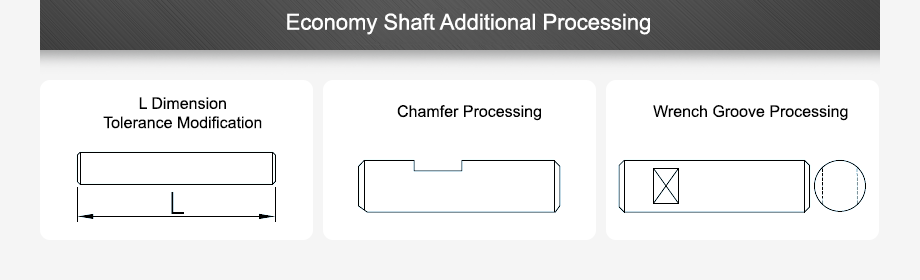

Additional machining of economy shaft
  • Change L dimension tolerance Change L dimension tolerance
  • Chamfer machining Add chamfer machining at any location
  • Wrench groove machining Add wrench groove at any location

Recommended Products

Linear Shafts Both Ends Tapped Linear Shafts Both Ends Tapped Price From MYR 18.14 /Unit
Linear Shaft Straight Type Linear Shaft Straight Type Price From MYR 19.54 /Unit
Linear Shafts One End Tapped Linear Shafts One End Tapped Price From MYR 10.30 /Unit
Linear Shafts Both Ends Tapped with Wrench Flats Linear Shafts Both Ends Tapped with Wrench Flats Price From MYR 17.60 /Unit
View all Economy Linear Shaft

Note: Please check the current specification, price and delivery date again from the product page.
